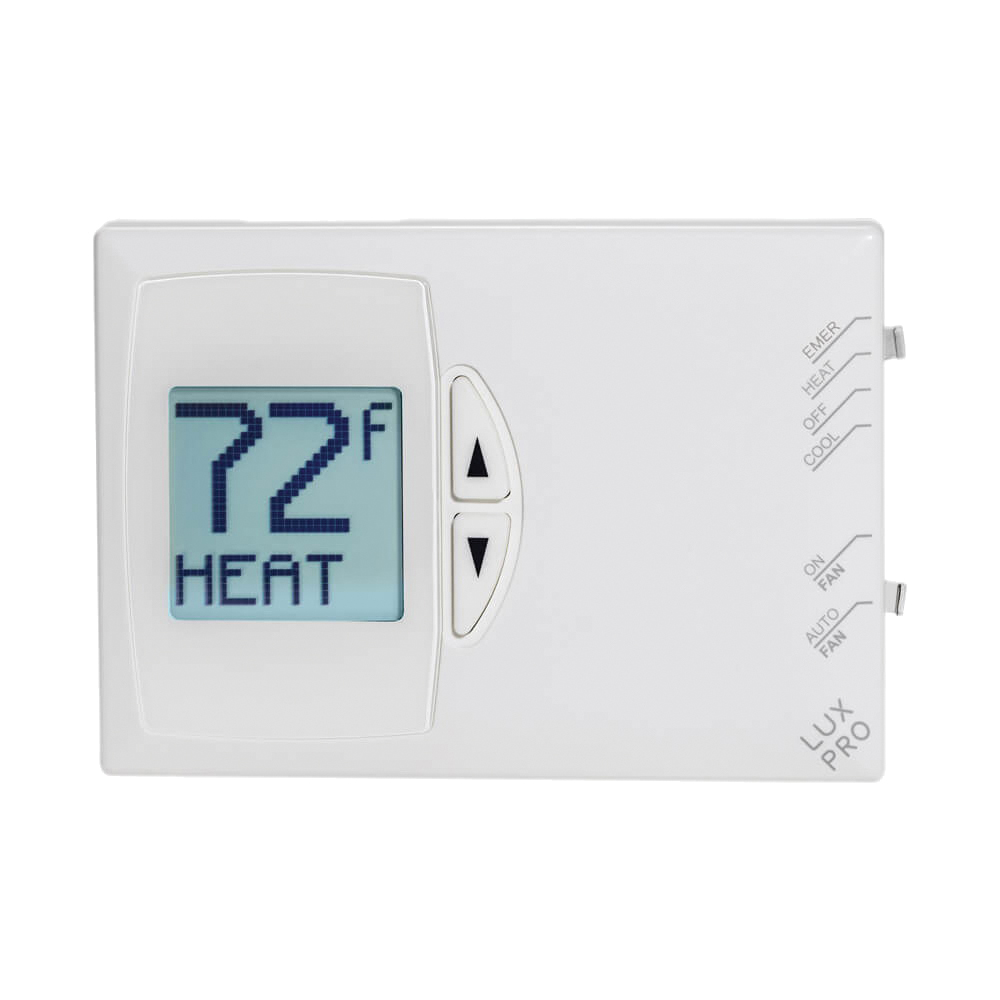

Lux PSDH121

Non-Programmable Thermostat, 24 VAC, 2 Heat/1 Cool Heat Pump

  • Manufacturers: Lux Products
  • Brand Name: Lux
  • PN: PSDH121
  • MPN: PSDH121
  • UPC: 021079031214
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      Plus/Minus 1 deg F at 50 - 90 deg F
Amperage Rating      :      1.5 A
Differential Temperature      :      0.25 - 2.25 deg F
Dimension      :      4-5/8 in W x 3-1/4 in H x 7/8 in D
Display Type      :      Large Backlight
Humidity Rating      :      20 - 90% Non-Condensing
Item Name      :      Non-Programmable Thermostat
Mounting      :      Horizontal
Power Source      :      Battery/Hardwired
Programmability      :      Non-Programmable
Setting Temperature      :      45 - 90 deg F
Stages      :      2 Heat/1 Cool Heat Pump
Temperature Rating      :      32 - 95 deg F
Terminal Designation      :      E, Y, B, O, W2, R, G, C
Voltage Rating      :      24 VAC
  • Easy installation
  • Horizontal or vertical mount
  • Easy view backlight
  • Optional wall plate model #WP567
  • Dual powered (2AA) alkaline batteries (included)
  • Adjustable compressor delay
  • Display option: Fahrenheit or Celsius temperature
  • Emergency heat mode switch
  • Low battery indicator
  • Adjustable temperature swing
  • 9-step temperature swing
  • Temperature calibration
  • High and low adjustable temp limits
  • Meets IP20 moisture and dust
  • 5-years warranty

Standards/Certifications: CE certified

Applications: For 24 volt heat pump, 1 or 2 heat/1 cool heat pump systems
