Mill-Rose 70797

Pink PTFE 3-Wrap, Waterline Thread Sealant Tape, 1/2 x 540 in

  • Manufacturers: Mill-Rose
  • Brand Name: Mill-Rose
  • PN: PTT12540
  • MPN: 70797
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Pink
Density      :      1.5 g/cc Plus/Minus 10%
Elongation      :      More than 100%
Item Name      :      Thread Sealant Tape
Length      :      540 in
Material      :      PTFE
Pressure Rating      :      4347 psi
Temperature Rating      :      -450 to 500 deg F
Tensile Strength      :      10 - 14 N/sq-m
Thickness      :      0.004 in Plus/Minus 10%
Type      :      3-Wrap, Waterline
Width      :      1/2 in

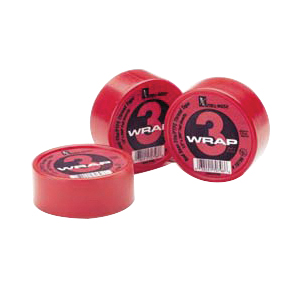

Mill-Rose 3-wrap red thread sealing tape is a PTFE tape designed specifically to seal lines carrying steam, water and other liquids. This is a full or maximum-density tape. Unlike most thread sealing tapes on the market, 3-Wrap tape has not been stretched during the manufacturing process. Stretching lowers the apparent density of tape by increasing its porosity. As stretched tape is more porous, more tape is required to obtain an effective seal.

  • -450 to 500 deg F PTFE is completely stable up to 500 deg F, decomposition is slow up to 750 deg F, decomposition will occur on contact with naked flames
  • In tests conducted by an independent laboratory Mill-Rose 3-wrap red waterline seal tape was found to seal fittings carrying water at pressures up to 4347 psi or 30000 kPa when applied as per instructions
  • Composition: 99% PTFE less than 1.0%

Standards/Certifications: UL listed

Applications: For galvanized steel, iron, brass, copper, aluminum, stainless steel, polyethylene, polypropylene, PVC, CPVC, ABS and fiberglass
