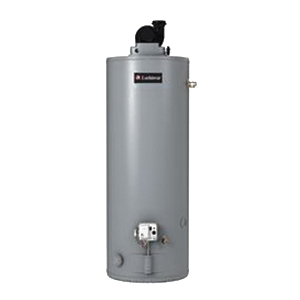

Lochinvar's power direct vent residential gas models are available in 40, 50 and 75 gal capacities, feature a power vent system for sidewall or rooftop termination and are qualified for Energy Star.

• Energy star - the power vented water heaters except PVN075 75ST meet the energy star requirement with 0.70 energy factors and are eligible for most utility rebate programs
• Code compliance - complies with the federal energy conservation standards effective April 16, 2015, in accordance with the energy policy and conservation act, (EPCA), as amended
• Power vented exhaust system - a quiet and efficient blower provides power vent operation through 2, 3 or 4 in PVC, CPVC or polypropylene vent pipe and plug into a standard 110/120 V outlet with a 6 ft power cord
• The vent may terminate through a sidewall or the roof and may run up to 180 ft
• Flammable vapor ignition resistant - an air intake snorkel elevates the combustion air openings which prevents flammable vapors from entering the combustion chamber
• Glass lined steel tank - the durable glass lining is fused to the steel tank at 1600 deg F to assure lasting protection against rust and corrosion while providing clear, clean hot water, 300 psi test pressure, 150 psi working pressure
• Non-CFC foam insulation - a uniform coverage of thick closed-cell foam insulation minimizes standby heat loss and maximizes heat retention and delivers a high energy factor
• Tank saver anode - a large diameter, high capacity anode inhibits corrosion of the tank interior for long, trouble-free service
• Heat traps are built-in to the inlet and outlet connections to eliminate heat migration and heat loss in the water piping
• Built-in sight glass provides an unobstructed view of the burner and pilot flame
• Temperature and pressure relief valve - factory-installed for optimum safety
• Brass drain valve - an enhanced ball valve design for effective drainage and positive shut-off
• Side tappings model
• 6-years limited tank and parts warranty

Standards/Certifications: AHRI, CSA certified, FVIR compliant

Applications: For potable water and space heating applications
