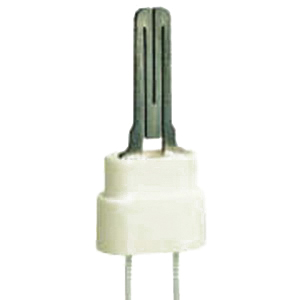

Honeywell Q4100C9060/U

Silicon Carbide Natural/Propane Gas Hot Surface Igniter, 120 VAC, 5-1/4 in Lead

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: Q4100C9060/U
  • MPN: Q4100C9060/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      Molex Side Lock Connector with 0.092 in Male Pins
Item Name      :      Hot Surface Igniter
Lead Length      :      5-1/4 in
Material      :      Silicon Carbide
Temperature Rating      :      392 deg F
Type      :      Natural/Propane Gas
Voltage Rating      :      120 VAC

Q4100C hot surface igniters are designed to provide a robust field service replacement igniter in gas fired appliances with 120 VAC silicon carbide hot surface igniters. The Q4100C uses a 120 V silicon carbide igniter design with long-life and high resistance to damage or burn out in the appliance. Q4100C models include the silicon carbide igniter, bracket, screw and wiring accessories to adapt the igniter to the specific appliance application.

  • Standard with rib on right edge mounting
  • Includes bracket, screw and wiring accessories
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22276_Instal.pdf
