Nibco NJ7400B
S-413-Y Class 125 Bronze Y-Pattern Horizontal Swing Check Valve, 1-1/4 in, Female Solder Cup
- Manufacturers: NIBCO
- Brand Name: Nibco
- PN: S413Y.114
- MPN: NJ7400B
- UPC: 039923634672
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Connection Size | : | 1-1/4 in |
| Connection Type | : | Female Solder Cup |
| Dimension | : | 4.19 in L |
| Flow Co-Efficient | : | 43 Cv |
| Item Name | : | Swing Check Valve |
| Material Specifications | : | ASTM B62, ASTM B140, C31400, ASTM B134, C23000, ASTM B16 |
| Material | : | Bronze |
| Model | : | S-413-Y |
| Pressure Class | : | Class 125 |
| Pressure Rating | : | 200 psi CWP Non-Shock |
| Type | : | Horizontal, Y-Pattern |

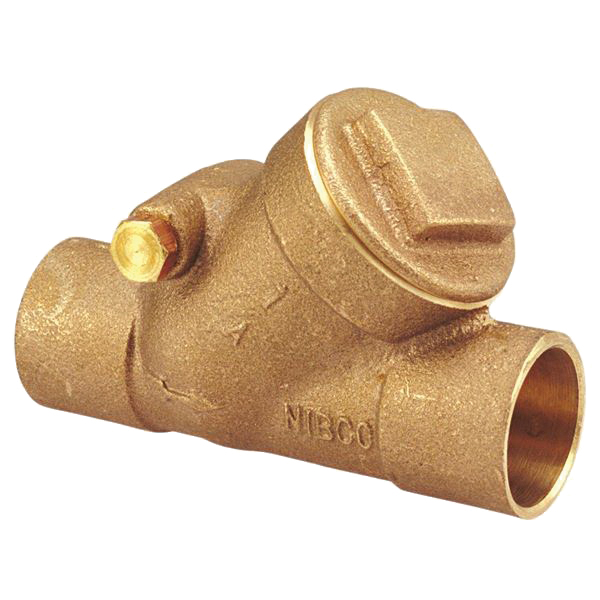

The Nibco bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features solder end connections for ease of installation. The check valve is recommended for commercial and industrial steam, water, oil and gas services. The Nibco check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing check valves may be installed in horizontal positions (or vertical with flow moving up). Nibco check valves are backed by the Nibco 5-years 125% limited warranty.
- 125 psi saturated steam to 353 deg F
- Renewable PTFE disc
- Regrindable seat
- Bronze bonnet, hinge pin, disc holder, disc hanger, hanger nut, seat disc nut, hinge pin plug and seat disc washer, PTFE seat disc steam
- Dezincification-resistant
- Non-manual turns/operation
Standards/Certifications: MSS SP-139, MSS SP-80 certified
Applications: For commercial and industrial steam, water, oil and gas services
