Nibco NJ7Q00C

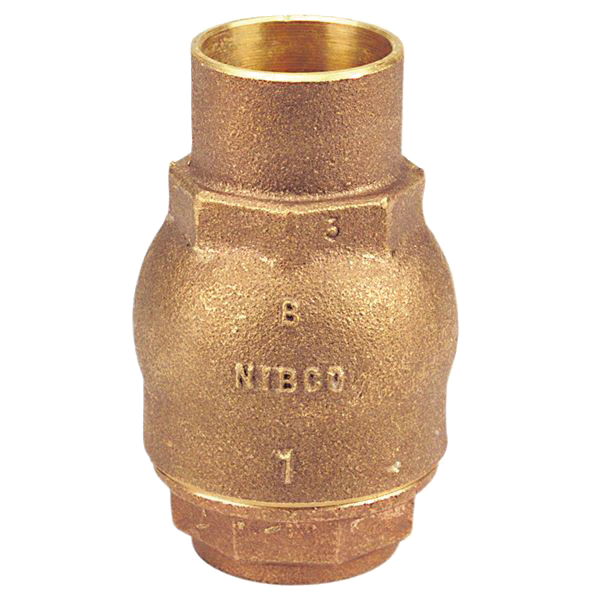

S-480-Y Bronze In-Line Ring Check Valve, 1-1/2 in, Female Solder Cup

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: S480Y.112
  • MPN: NJ7Q00C
  • UPC: 039923638595
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/2 in
Connection Type      :      Female Solder Cup
Dimension      :      3.31 in L x 2-3/4 in W
Disc Material      :      PTFE
Flow Co-Efficient      :      72 Cv
Item Name      :      In-Line Ring Check Valve
Material Specifications      :      ASTM B584, C89833, ASTM A276, S30200, ASTM B21, C46400, H02, ASTM A276, S30400, ASTM A582, S30300
Material      :      Bronze
Model      :      S-480-Y
Operator Type      :      316 Stainless Steel Spring Actuated
Pressure Rating      :      125 psi Saturated Steam at 353 deg F, 250 psi CWP Non-Shock
Stem Material      :      Stainless Steel

The Nibco bronze ring check valve is uniquely designed with an in-line, spring assisted self-closing disc. The lift check valve prevents backflow by automatically closing when fluid reverses direction. With a PTFE disc, the check valve is recommended for steam service. The Nibco ring check valve has solder end connections for ease of installation. This check valve may be installed in horizontal positions or vertical with flow moving up. Nibco check valves are backed by the Nibco 5-years 125% limited warranty.

  • In-line lift type
  • Spring actuated (1/2 psi cracking pressure)
  • PTFE resilient seat disc
  • 301 stainless steel disc holder, stainless steel seat screw
  • Dezincification-resistant
  • Non-manual turns/operation

Standards/Certifications: MSS SP-80 certified
