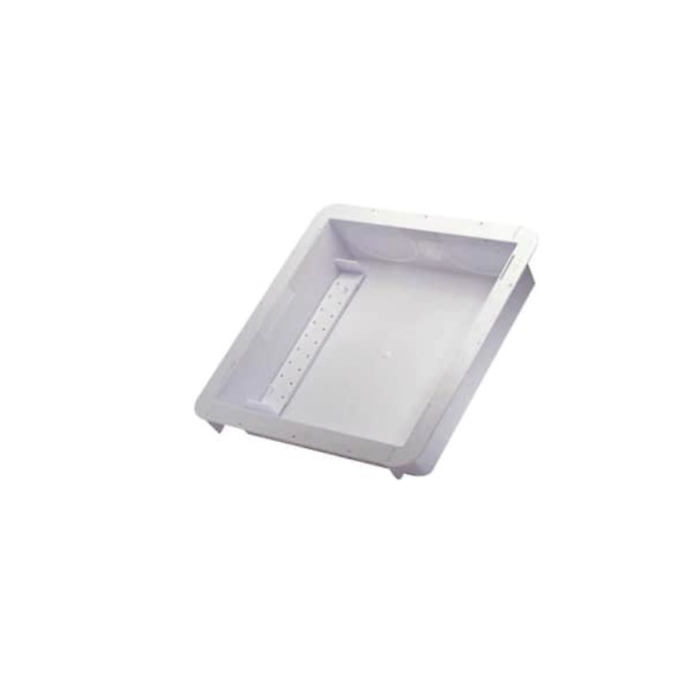

The DBX1000 dryer vent box with snap-on trim ring. Made of high-impact polystyrene. The DBX1000 dryer vent box comes in two sizes 4 in (for a 2 x 4 in wall) or a 6 in size. (for a 2 x 6 in wall). This dryer vent box can also be used to down vent, just turn the box upside down and your done. The DBX1000 comes with a snap on trim ring which helps eliminate repairs and saves you time.

• Snap on trim ring helps eliminate extra drywall, caulking and paint repairs
• Each box has knockouts for direct venting, down venting and up venting
• Comes with knockouts for gas pipe on top and bottom of the box
• Box can be rotated to accommodate any type of venting
• White in color to match the washer box
• Can also be used behind gas stoves to recess the gas hose connection
• Comes with 2-straps to help attach the box to both studs

Standards/Certifications: cRUus listed, ASTM E814-13A, CAN/ULC S115-11, UL 94 HB flammability rating

Applications: For 2 x 4 in wall

• Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14464_Instal.pdf
• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14464_Spec.pdf
• Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14464_Tech.pdf
