Viega 24000

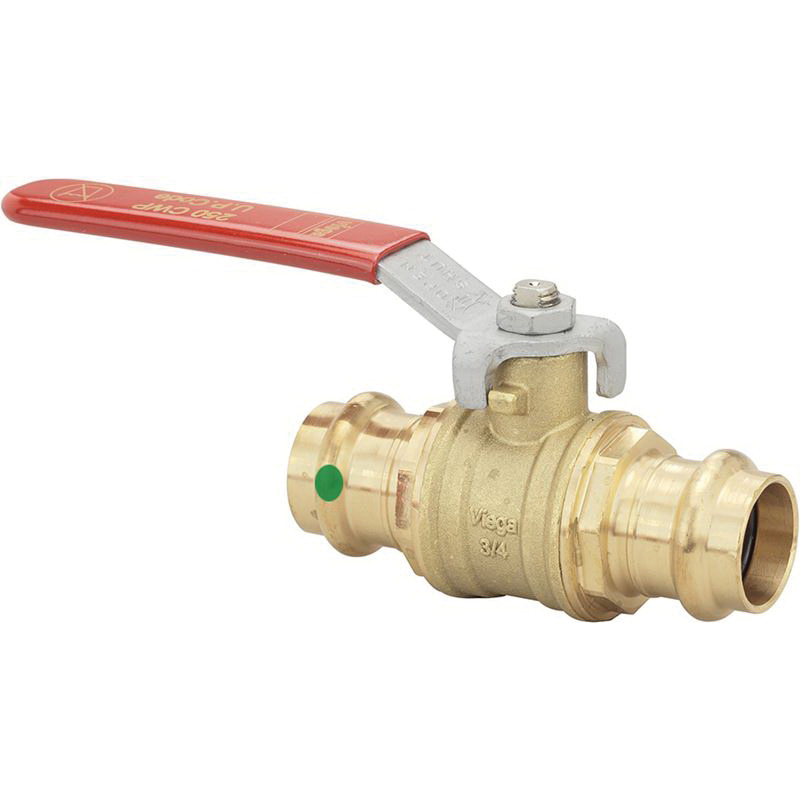

ProPress 2973 Brass Full-Port Ball Valve, 1/2 in, Press
- Manufacturers: Viega
- Brand Name: Viega
- PN: RI19678
- MPN: 24000
- UPC: 691514240008
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Ball Material | : | Chrome-Plated Brass |
| Connection Size | : | 1/2 in |
| Connection Type | : | Press |
| Dimension | : | 3.16 in L |
| Item Name | : | Ball Valve |
| Material Specifications | : | C37700 |
| Material | : | Brass |
| Model | : | 2973 |
| Operator Type | : | Zinc-Plated Steel Handle |
| Pressure Rating | : | 200 psi, 250 psi CWP |
| Seal Material | : | EPDM |
| Seat Material | : | RPTFE |
| Stem Material | : | Brass |
| Sub Brand | : | ProPress |
| Temperature Rating | : | 0 - 250 deg F |
| Type | : | Full-Port |
Viega ProPress model 2973 is a full port ball valve intended for hydronic and non-potable applications. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's Smart Connect technology for easy identification of unpressed connections during pressure testing.
- Smart connect technology
- For non-potable application
- Zinc-plated steel nut, polyvinyl handle cover, EPDM sealing element
Standards/Certifications: MSS SP-110, NSF-UP certified, IGC-157, ISO 9001 standard
Applications: For hydronic and non-potable applications
