SharkBite UXL0141

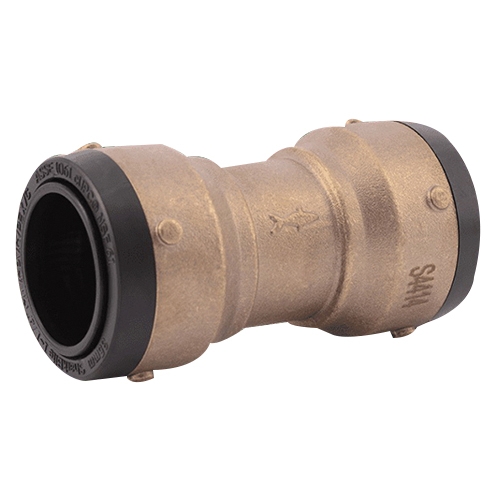

Natural DZR Brass Large Diameter Coupling, 1-1/2 in CTS, Push-to-Connect, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: SB0141
  • MPN: UXL0141
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/2 in
Connection Type      :      Push-to-Connect
Finish      :      Natural
Item Name      :      Coupling
Material      :      DZR Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F
Type      :      Large Diameter

Innovative push-to-connect design makes for quick and easy installation. Connect 2-pieces of different sized PEX, copper, CPVC, PE-RT and/or HDPE pipe in any combination. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

  • Lead-free
  • Compatible with PEX, copper, CPVC, PE-RT and HDPE pipes in any combination
  • No special tools, crimping, glue or soldering is needed
  • Can be installed in wet lines
  • Approved for underground and behind-the-wall applications with no access panels
  • 25-years warranty

Standards/Certifications: ANSI/NSF 14 and 372, ANSI/NSF/CAN 61 certified, ASSE 1061, IAPMO, UPC, IPC and cUPC listed, CSA B125.3, CAN/ULC S102.2 and S101, UL 263, ASTM E84, E119

Applications: For PEX, copper, CPVC, PE-RT and HDPE pipes

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28474_Spec.pdf
