Easyflex EF-NHC-200HD

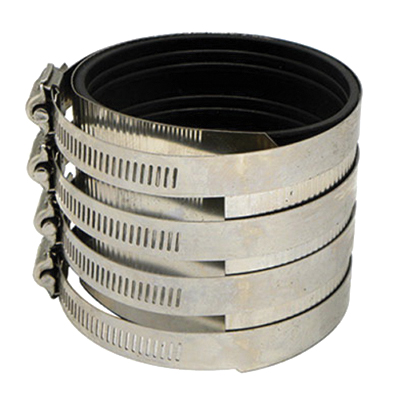

301 Stainless Steel Heavy-Duty Coupling, 2 in, No-Hub

  • Manufacturers: Easyflex
  • Brand Name: Easyflex
  • PN: EF-NHC-200HD
  • MPN: EF-NHC-200HD
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      No-Hub
Item Name      :      Coupling
Material Specifications      :      ASTM C1277, ASTM C564, ASTM C1540, ASTM A888
Material      :      301 Stainless Steel
Type      :      Heavy-Duty
  • Soft rubber gaskets mold to the pipes
  • Water-tight seal
  • Low expansion and contraction
  • Resistance to vibrations
  • Oval band notches
  • Floating eyelet design
  • Bi-directional shield design
  • Includes (4) 9/16 in 301 AISI stainless steel clamp, 5/16 in hex, 305 stainless steel screw, 0.007 in THK 301 AISI stainless steel shield, elastomeric compound conforming to ASTM C564 gasket
  • 60 in-lb installation torque

Standards/Certifications: UPC CISPI 310, NSF and cCSAus certified

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14845_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS14845_Spec.pdf
