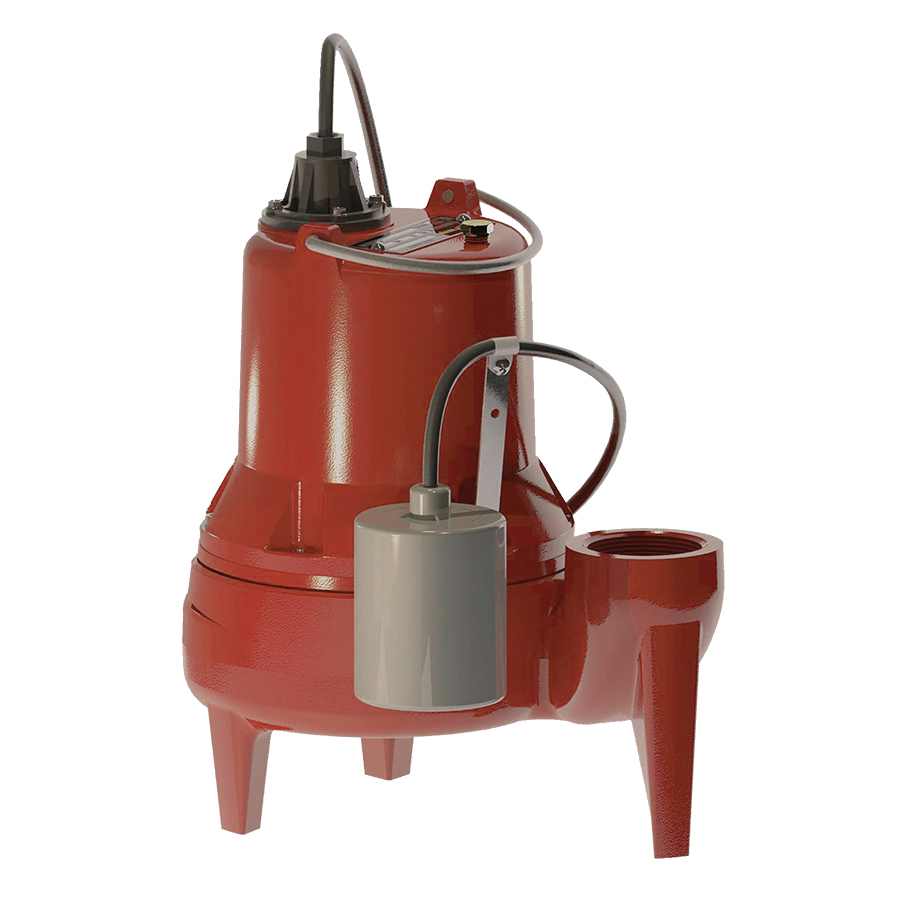

Liberty Pumps LE41A
LE40 Powder Coated Cast Iron Automatic Submersible Sewage Pump, 115 VAC, 4/10 hp, 1725 rpm, 122 gpm, 19 ft Head
- Manufacturers: Liberty Pumps
- Brand Name: Liberty Pumps
- PN: LE41A
- MPN: LE41A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 12 A |
| Bearing Type | : | Ball |
| Connection Size | : | 2 in FNPT Discharge |
| Cord Length | : | 10 ft |
| Dimension | : | 10-3/4 in W x 14 in H |
| Finish | : | Powder Coated |
| Flow Rate | : | 122 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 4/10 hp |
| Impeller Material | : | Polymer |
| Item Name | : | Submersible Sewage Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 19 ft |
| Phase | : | 1 ph |
| RPM | : | 1725 rpm |
| Series | : | LE40 |
| Temperature Rating | : | 140 deg F |
| Type | : | Automatic |
| Voltage Rating | : | 115 VAC |
Liberty's LE40-series is the perfect choice for residential sewage applications. Featuring all cast iron construction with an epoxy powder coat finish, stainless steel fasteners, quick-disconnect power cord and a vortex style impeller for superior solids handling, the LE40-series combines solid performance with exceptional value. Optional vertical float switch model available in 115 V.
- Oil-filled and thermally protected motor
- Permanently lubricated ball bearings
- Corrosion-resistant, vortex style impeller made of high temperature engineering polymer
- All stainless steel fasteners and rotor shaft
- Quick-disconnect 10 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
- The shaft seal shall be of the carbon/ceramic unitized design, with Buna-N elastomers and stainless housings
- The pump shall have a vortex style impeller capable of passing a 2 in spherical solid
- Wide angle float automatic level control
- Class B stator winding insulation
- 3-years limited warranty
Standards/Certifications: cCSAus, SSPMA certified
