Little Giant 504203

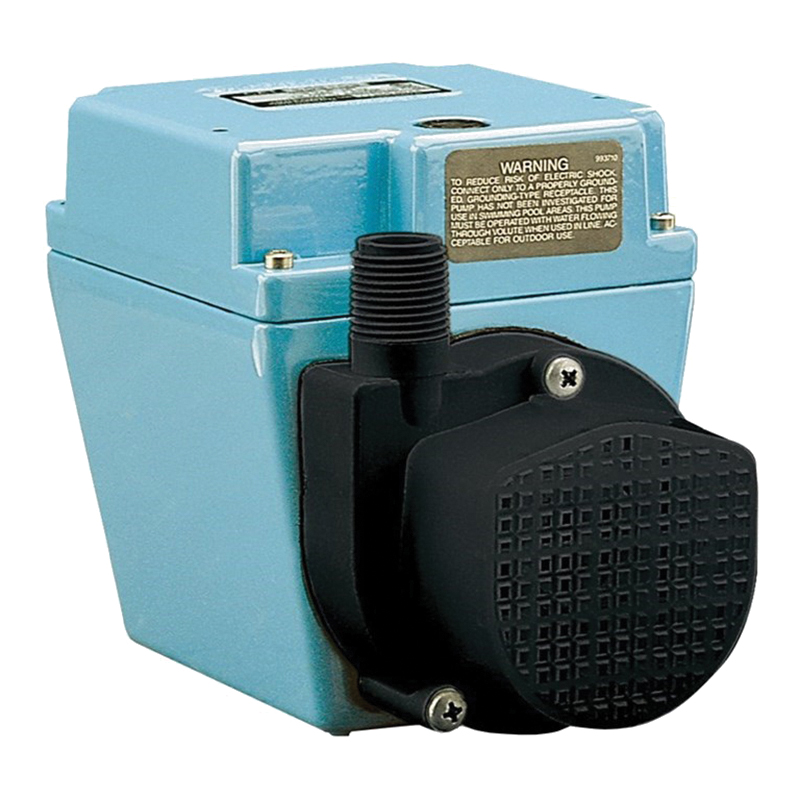

4E-34NR Epoxy Coated Cast Aluminum Oil-Filled Direct Drive Submersible Pump, 115 VAC, 1/12 hp, 810 gph, 24.5 ft Head

  • Manufacturers: Franklin Electric
  • Brand Name: Little Giant
  • PN: LG504203
  • MPN: 504203
  • UPC: 010121042032
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      3.5 A
Connection Size      :      1/2 in MNPT Discharge
Cord Length      :      6 ft
Dimension      :      7 in W x 5.4 in H x 4.4 in D
Finish      :      Epoxy Coated
Flow Rate      :      810 gph
Frequency Rating      :      60 Hz
HP Rating      :      1/12 hp
Impeller Material      :      Nylon
Item Name      :      Submersible Pump
Material      :      Cast Aluminum
Maximum Feet of Head      :      24.5 ft
Model      :      4E-34NR
Pressure Rating      :      10.6 psi
Temperature Rating      :      120 deg F
Type      :      Oil-Filled, Direct Drive
Voltage Rating      :      115 VAC
Wattage      :      210 W
  • 1/12 hp oil-filled heavy-duty motor
  • Epoxy coated cast aluminum housing and cover
  • Nylon volute
  • Fluoroelastomer (FKM) shaft seal
  • Polypropylene screen
  • 3/4 in FNPT intake
  • Aluminum backplate
  • Thermal overload protection

Standards/Certifications: UL listed

Applications: For submersed or in-line use, water transfer or recirculation, water displays and air conditioners

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19084_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19086_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19086_Spec.pdf
