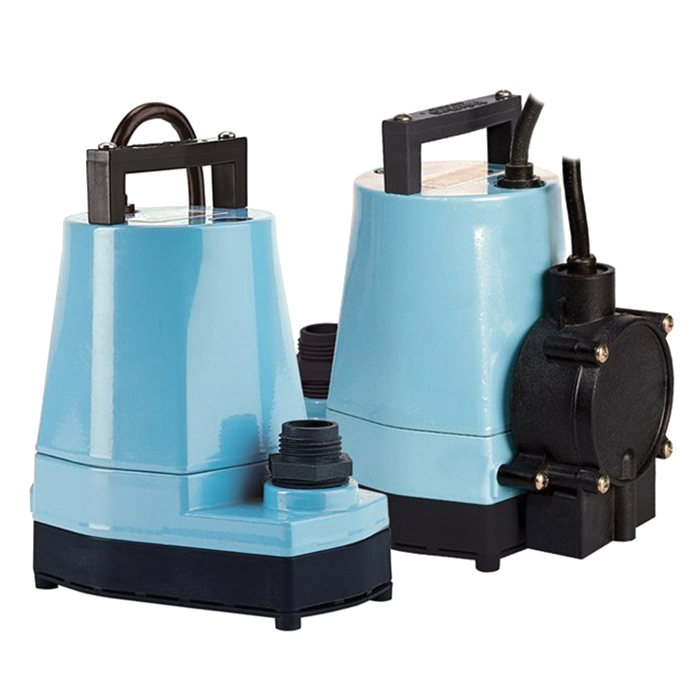

Little Giant 505300
5-ASP Epoxy Coated Cast Aluminum Automatic Submersible Utility Pump, 115 VAC, 1/6 hp, 1200 gpm, 26.3 ft Head
- Manufacturers: Franklin Electric
- Brand Name: Little Giant
- PN: LG505300
- MPN: 505300
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 5 A |
| Bearing Type | : | Sleeve |
| Connection Size | : | 1 in FNPT Discharge |
| Cord Length | : | 10 ft |
| Dimension | : | 6.1 in W x 7.78 in H x 4.13 in D |
| Finish | : | Epoxy Coated |
| Flow Rate | : | 1200 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Impeller Material | : | Nylon |
| Item Name | : | Submersible Utility Pump |
| Material | : | Cast Aluminum |
| Maximum Feet of Head | : | 26.3 ft |
| Model | : | 5-ASP |
| Pressure Rating | : | 11.4 psi |
| Series | : | 5 |
| Temperature Rating | : | 120 deg F |
| Type | : | Automatic |
| Voltage Rating | : | 115 VAC |
| Wattage | : | 380 W |
- 1/6 hp shaded pole motor with overload protection
- Designed for continuous-duty
- Pumps down to 1/8 in
- Removable inlet screen for easy cleaning
- Multiple switch options for automatic operation
- Nylon volute, stainless steel motor shaft, fluoroelastomer shaft seal, stainless steel fasteners, bronze sleeve bearing, SJTW power cord
- Garden hose adapter included
Standards/Certifications: cCSAus certified
Applications: For commercial, industrial and home uses where water must be transferred or recirculated
