Little Giant 511610

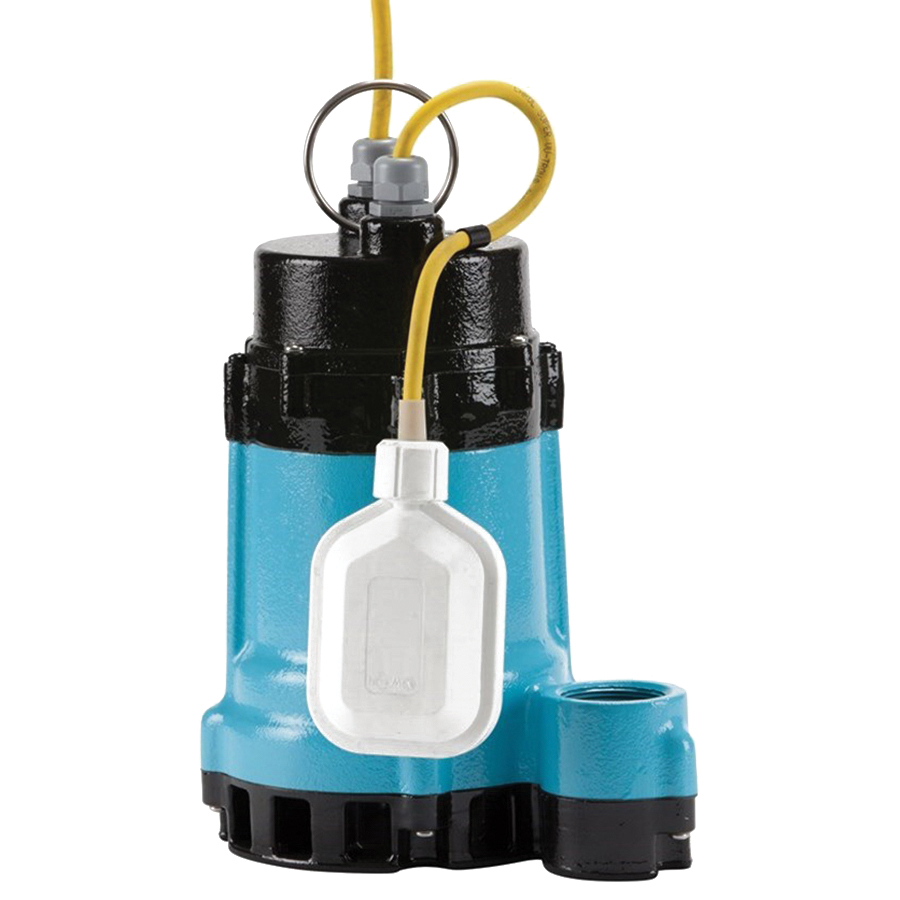

HT-10EN-CIM Epoxy Coated Cast Iron Manual Effluent Pump, 115 VAC, 1/2 hp, 75 gpm, 30 ft Head
- Manufacturers: Franklin Electric
- Brand Name: Little Giant
- PN: LG511610
- MPN: 511610
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 10.5 A |
| Bearing Type | : | Ball |
| Connection Size | : | 1-1/2 in FNPT Discharge |
| Cord Length | : | 15 ft |
| Dimension | : | 9.56 in W x 11.16 in H |
| Finish | : | Epoxy Coated |
| Flow Rate | : | 75 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Nylon |
| Item Name | : | Effluent Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 30 ft |
| Model | : | HT-10EN-CIM |
| Pressure Rating | : | 13 psi |
| Series | : | HT-10EN |
| Temperature Rating | : | 200 deg F |
| Type | : | Manual |
| Voltage Rating | : | 115 VAC |
| Wattage | : | 900 W |
- Rated for continuous-duty use dewatering, water transfer and effluent wastewater removal applications
- Energy-efficient PSC motor with thermal overload protection
- Handles liquids up to 200 deg F
- Heavy-duty epoxy coated cast iron housing
- Solids handling up to 3/4 in Dia
- Non-clogging impeller type
- Fluoroelastomer (FKM) with carbon and Ni-resist faces
- Stainless steel fasteners
- Steel shaft
- Upper and lower ball bearings
- SJTW power cord
- Integral mechanical float
Standards/Certifications: cCSAus certified
