Nibco NHDT00H

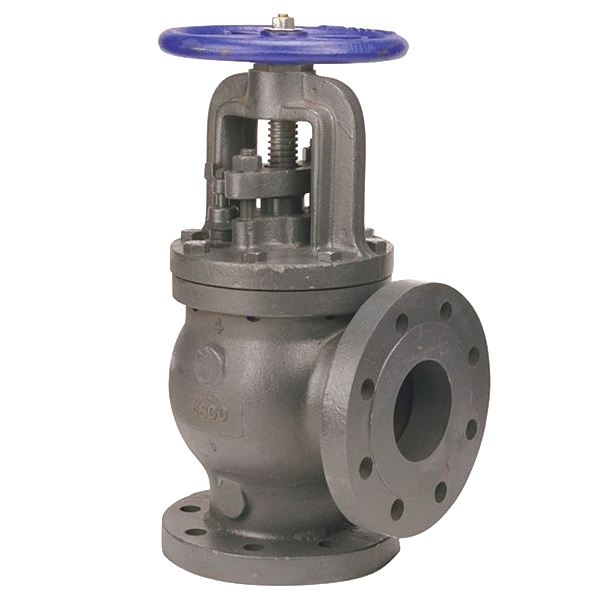

F-869-B Class 250 Cast Iron Automatic Steam Stop-Check Angle Valve, 4 in, Flanged

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: F869B.4
  • MPN: NHDT00H
  • UPC: 039923702029
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      4 in
Connection Type      :      Flanged
Dimension      :      23-1/2 in H Open
Disc Material      :      Cast Iron
Flow Co-Efficient      :      243.75 Cv
Item Name      :      Steam Stop-Check Angle Valve
Material Specifications      :      ASTM A307, ASTM A126 Class B, ASTM B16, C36000, ASTM A536, ASTM B584, C84400, ASTM F467, C27000, ASTM B783, ASTM B371, C69400
Material      :      Cast Iron
Model      :      F-869-B
Operator Type      :      Cast Iron Handwheel
Packaging Material      :      PTFE
Pressure Class      :      Class 250
Pressure Rating      :      500 psi CWP Non-Shock, 250 psi Saturated Steam at 406 deg F
Stem Material      :      Brass
Temperature Rating      :      -20 to 150 deg F
Trim Material      :      Bronze
Type      :      Automatic

The Nibco cast iron automatic steam stop-check angle valve is designed for steam systems with boilers installed in tandem. The steam stop-check design prevents boiler flooding by automatically closing when steam and condensate begins to back up. These valves are also used to isolate boilers in a steam system. The valve is Class 250 flanged iron body and bronze mounted trim (IBBM). The Nibco steam stop-check angle valve has flanged end connections for ease of installation. This valve features renewable seat and disc. The bolted bonnet makes the valve convenient to maintain. Nibco valves are backed by the Nibco 5-years 125% limited warranty.

  • 250 psi saturated steam to 406 deg F
  • Bronze mounted trim
  • Angle pattern
  • Bolted bonnet
  • Renewable seat and disc
  • Steel hand wheel nut, gland follower stud, butterfly handle nut, aluminum identification plate, cast iron bonnet, piston-disc
  • Copper alloy yoke bushing, butterfly handle, control valve stem, control valve pack nut, control valve pack gland, dashpot, disc face ring, seat ring, piston ring collar, disc cage, disc plate and nut, piston rod plug and piston rod plug pin
  • Zinc-plated powdered iron packing gland, synthetic fibers with graphite control valve packing, reinforced graphite dashpot gasket, (2) PTFE composite material piston ring

Standards/Certifications: MSS SP-85 certified

Applications: For steam systems with boilers installed in tandem
