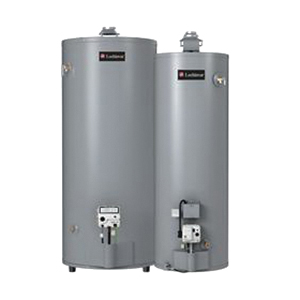

Lochinvar's high efficiency residential gas models are available in 40 and 50 gal capacities in short and tall configurations and are qualified for Energy Star.

• Energy star - the high-efficiency water heaters meet the energy star requirement with 0.67 energy factor and are eligible for most utility rebate programs
• Code compliance - complies with the federal energy conservation standards effective April 16, 2015, in accordance with the energy policy and conservation act, (EPCA), as amended
• Flammable vapor ignition resistant - combustion air is directed through a flame arrestor plate specifically designed to prevent flame roll-out and flammable vapor ignition
• Electronic gas control - the gas valve features electronic ignition, control logic for precise temperature control and an LED status indicator for simplified service diagnostics, energy star water heaters plug into a standard 110/120 V outlet and include a 10 ft power cord
• Low NOx burner - the patented radial burner design reduces NOx emissions by more than 33% delivering less than 40 ng/j of NOx
• An automatic flue damper opens and closes to reduce heat loss up the vent during standby mode
• Glass lined steel tank - the durable glass lining is fused to the steel tank at 1600 deg F to assure lasting protection against rust and corrosion while providing clear, clean hot water, 300 psi test pressure, 150 psi working pressure
• Non-CFC foam insulation - a uniform coverage of thick closed-cell foam insulation minimizes standby heat loss and maximizes heat retention and delivers a high energy factor
• Tank saver anode - a large diameter, high capacity anode inhibits corrosion of the tank interior for long, trouble-free service
• Heat traps are built-in to the inlet and outlet connections to eliminate heat migration and heat loss in the water piping
• A built-in sight glass provides an unobstructed view of the burner and pilot flame
• Temperature and pressure relief valve - factory-installed for optimum safety
• Brass drain valve - an enhanced ball valve design for effective drainage and positive shut-off
• Tall models
• 6-years limited tank and parts warranty

Standards/Certifications: Energy Star, AHRI, CSA certified

Applications: For potable water and space heating applications

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19260_Cat.pdf
• Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19260_Instal.pdf
