McDonnell & Miller 142400

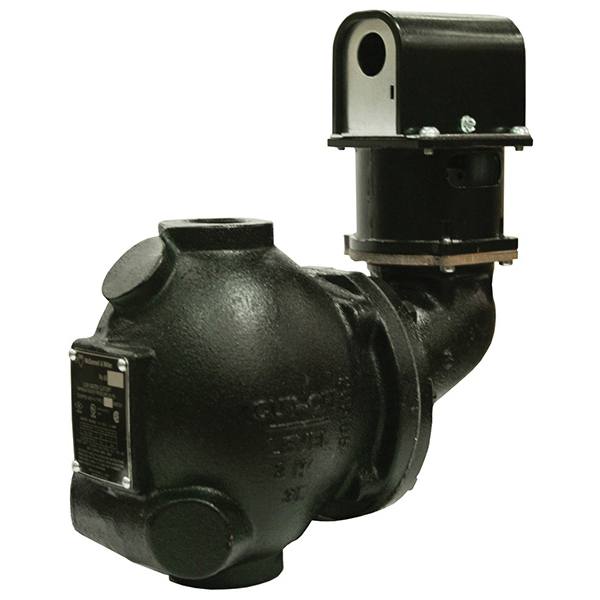

63 Mechanical Heavy-Duty Low Water Cut-Off for Residential, Commercial and Industrial, Hot and Steam Boilers

  • Manufacturers: Xylem
  • Brand Name: McDonnell & Miller
  • PN: MM142400
  • MPN: 142400
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      10.2 A at 120 V and 5.1 A at 240 V Full Load, 61.2 A at 120 V and 30.6 A at 240 V Load Locked
Connection Type      :      NPT
Dimension      :      9-3/8 in L x 5-1/8 in W x 10-1/2 in H
Frequency Rating      :      60 Hz
Includes      :      No.2 Switch
Item Name      :      Low Water Cut-Off
Model      :      63
Pressure Rating      :      50 psi
Size      :      1 in
Type      :      Mechanical, Heavy-Duty
VA Rating      :      125 VA Pilot-Duty
Voltage Rating      :      120/240 VAC
  • Use with TC-4 on hot water systems

Standards/Certifications: UL listed, CSA certified, FM approved

Applications: For residential, commercial and industrial, hot and steam boilers

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19900_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3202_Instal.pdf
