McDonnell & Miller 149400
Send Print
  1. pin-int

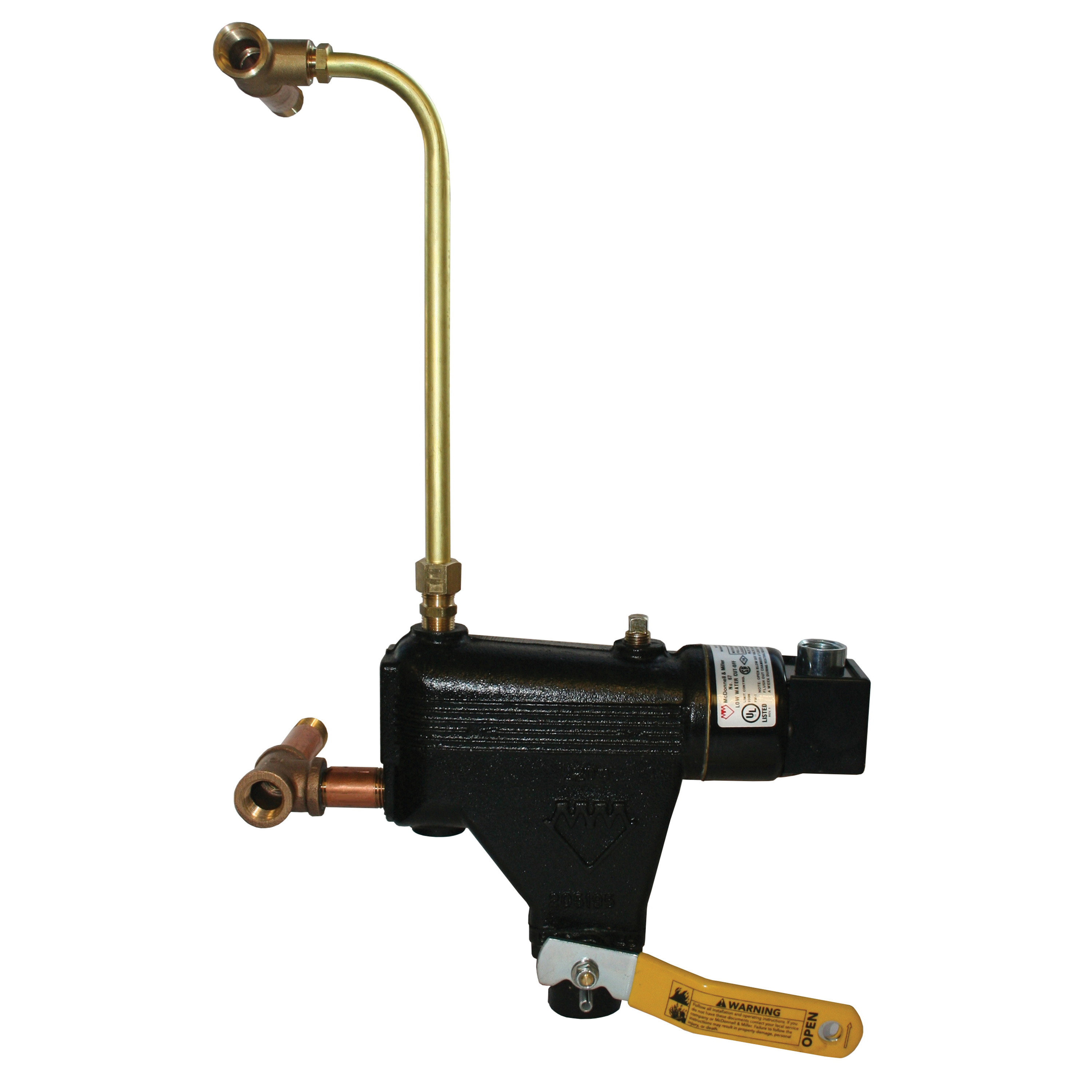

McDonnell & Miller 149400

67 Mechanical Low Water Cut-Off for Residential and Commercial Steam Boilers

  • Manufacturers: Xylem
  • Brand Name: McDonnell & Miller
  • PN: MM149400
  • MPN: 149400
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      7.4 A at 120 V and 3.7 A at 240 V Full Load, 44.4 A at 120 V and 22.2 A at 240 V Load Locked
Connection Type      :      NPT
Dimension      :      9-23/32 in L
Item Name      :      Low Water Cut-Off
Model      :      67
Pressure Rating      :      20 psi
Size      :      3/8, 3/4 and 1/4 in
Type      :      Mechanical
VA Rating      :      125 VA Pilot-Duty
Voltage Rating      :      120/240 VAC
  • For boilers of any steaming capacity
  • Quick hook-up fittings provided
  • Lever-operated, full-port ball valve for easy blow-down
  • Adjustable BX outlet for easy installation
  • Dual precision switches for dependable operation of the low water cut-off and alarm or electric water feeder

Standards/Certifications: UL listed, CSA certified, FM approved

Applications: For residential and commercial steam boilers

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19900_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3280_Instal.pdf
