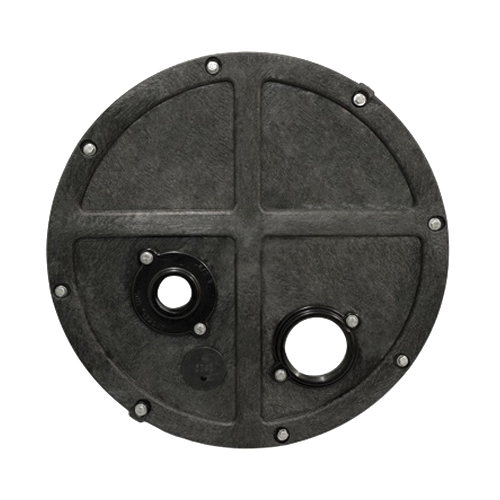

Jackel SF16101

Polyethylene Structural Foam Sewage Basin Cover for SF20, SF22, SF30 Basins

  • Manufacturers: Jackel
  • Brand Name: Jackel
  • PN: SF16101
  • MPN: SF16101
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      20-1/2 in Dia
Item Name      :      Sewage Basin Cover
Material      :      Polyethylene Structural Foam

The Jackel-SF16101 is the cornerstone of the Jackel sewage basin covers. It provides a gas and radon tight seal to any of our 18 in diameter basins. Constructed of injection molded polyethylene structural foam, the Jackel-SF16101 has proven to be one of the best sewage basin covers made. It also includes our reusable PVC seal.

  • Heavy-duty construction for longer-life
  • Recognized T-Top design
  • 2 or 3 in threaded vent flange
  • Re-usable PVC seal
  • 8-bolt, gas, radon and odor tight
  • 19-1/2 in bolt circle
  • 11/16 in structural thickness
  • Flexible polyvinyl chloride (PVC) thermoplastic seal
  • Acrylonitrile butadiene styrene (ABS) fittings
  • 301 stainless steel washers and bolts
  • 1-1/4, 1-1/2, 2 or 3 in slip connection discharge flange

Applications: For use with our Jackel-SF20, SF22, SF30 and FLARE45 basins

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17371_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17371_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17371_Tech.pdf
