Jackel SF16101-B

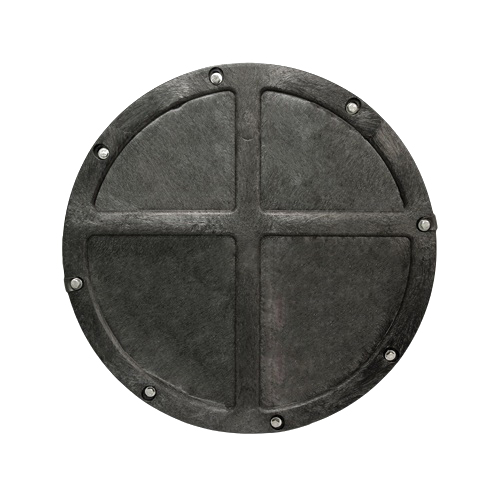

Polyethylene Structural Foam Sewage Basin Cover, 20-1/2 in Dia x 11/16 in THK

  • Manufacturers: Jackel
  • Brand Name: Jackel
  • PN: SF16101-B
  • MPN: SF16101-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dimension      :      20-1/2 in Dia x 11/16 in THK
Item Name      :      Sewage Basin Cover
Material      :      Polyethylene Structural Foam

The SF16101-B sewage basin cover provides a gas and radon tight seal to any of our 18 in diameter basins. Constructed of injection molded polyethylene structural foam, the SF16101-B has proven to be one of the best sewage basin covers made. It also includes our reusable PVC seal.

  • Heavy-duty construction for longer-life
  • Recognized T-Top design
  • Solid design allows for installation flexibility
  • Re-usable PVC seal
  • 8-bolt, gas, radon and odor tight
  • 19-1/2 in bolt circle
  • 11/16 in structural thickness
  • Flexible polyvinyl chloride (PVC) thermoplastic seal
  • 301 stainless steel washers and bolts

Applications: For use with our SF20, SF22, SF30BA and SF30PR basins

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17372_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17372_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17372_Tech.pdf
