Milwaukee Valve BA-400 A 100

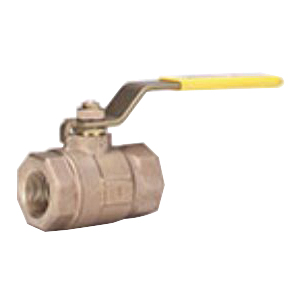

BA-400 Bronze 2-Piece Full-Port Ball Valve, 1 in, NPT

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MVBA400.1
  • MPN: BA-400 A 100
  • UPC: 697988362987
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Hard Chrome-Plated Brass
Connection Size      :      1 in
Connection Type      :      NPT
Dimension      :      3.32 in L
Flow Co-Efficient      :      61 Cv
Item Name      :      Ball Valve
Material Specifications      :      ASTM B584, ASTM B283, ASTM B16
Material      :      Bronze
Model      :      BA-400
Operator Type      :      Zinc-Plated Steel Handle
Packaging Material      :      PTFE
Pressure Rating      :      150 psi WSP, 600 psi WOG
Seal Material      :      RTFE
Seat Material      :      RTFE
Stem Material      :      Brass
Type      :      2-Piece, Full-Port
  • Not intended for use in potable water
  • Blowout-proof stem design
  • Brass tailpiece and packing nut, 15% glass-filled RPTFE seat, 25% glass-filled RPTFE thrust washer, vinyl handle grip, zinc-plated steel handle nut

Standards/Certifications: MSS SP-110 certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20451_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20550_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20566_Spec.pdf
