Milwaukee Valve UPBA-100 A 112

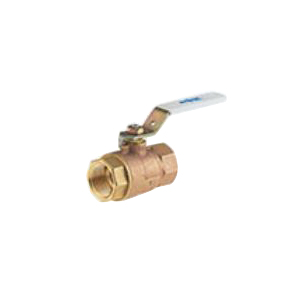

Ultra-Pure UPBA-100 Bronze 2-Piece Standard Port Ball Valve, 1-1/2 in, NPT, Lead-Free

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MVUPBA100.112
  • MPN: UPBA-100 A 112
  • UPC: 697988613089
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Hard Chrome-Plated Brass
Connection Size      :      1-1/2 in
Connection Type      :      NPT
Dimension      :      3.96 in L
Flow Co-Efficient      :      87 Cv
Item Name      :      Ball Valve
Material Specifications      :      ASTM B584, C89833, ASTM B283, C27450, ASTM B21, C46400, ASTM B16, C36000, ASTM B633
Material      :      Bronze
Model      :      UPBA-100
Operator Type      :      Zinc-Plated Steel Handle
Packaging Material      :      PTFE
Pressure Rating      :      600 psig WOG
Seal Material      :      RPTFE
Seat Material      :      RPTFE
Stem Material      :      Brass
Sub Brand      :      Ultra-Pure
Type      :      2-Piece, Standard Port
  • Lead-free
  • Blowout-proof stem design
  • Cast bronze tailpiece, 15% glass-filled RPTFE seat, 25% glass-filled RPTFE thrust washer, brass packing nut, vinyl handle grip, zinc-plated steel handle nut

Standards/Certifications: IAPMO R&T listed, MSS SP-110, ANSI/NSF 61 and 372 certified

Applications: For potable water applications
