Domestic Manufacturer 1BXE.NB

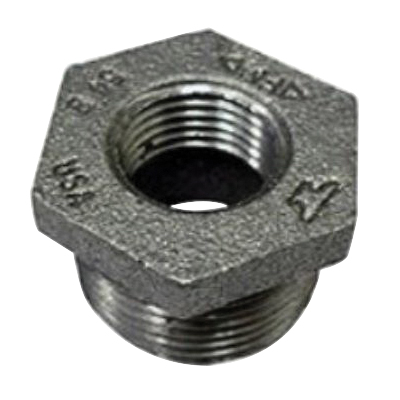

Class 125 SCH STD Galvanized Cast Iron Outside Head Hex Bushing, 1-1/4 x 3/4 in, MNPT x FNPT, Domestic

  • Manufacturers: Domestic Manufacturer
  • Brand Name: Domestic Manufacturer
  • PN: GHB114.34
  • MPN: 1BXE.NB
  • UPC: 66246744194
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/4 x 3/4 in
Connection Type      :      MNPT x FNPT
Finish      :      Galvanized
Item Name      :      Hex Bushing
Length      :      1.08 in
Material Specifications      :      ASTM A197, ASTM A153
Material      :      Cast Iron
Pressure Class      :      Class 125
Pressure Rating      :      175 psi
Schedule      :      STD
Temperature Rating      :      -20 to 150 deg F
Type      :      Outside Head

WARD bushings are produced in cast iron grades. The iron from which they are made is held to strict formula by careful chemical analysis and control. Tapping is done on the most modern type of threading machines. Every fitting is hand sorted and inspected to eliminate defective castings.

  • Domestic

Standards/Certifications: ASME B16.14, ANSI/ASME B1.20.1, ASME B16.4, NSF 61 and NSF 61 annexure G certified, UL and ULC listed, FM approved

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3703_Cat.pdf
