Milwaukee Valve UP17837

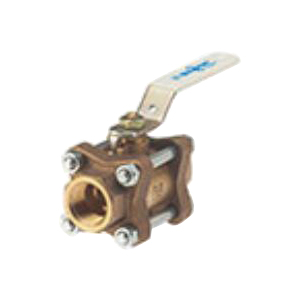

UPBA350S Bronze 3-Piece Full-Port Ball Valve, 2 in, Solder, Lead-Free

  • Manufacturers: Milwaukee Valve
  • Brand Name: Milwaukee Valve
  • PN: MVUPBA350S.2
  • MPN: UP17837
  • UPC: 697988613638
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      316 Stainless Steel
Connection Size      :      2 in
Connection Type      :      Solder
Dimension      :      5.7 in L
Flow Co-Efficient      :      360 Cv
Item Name      :      Ball Valve
Material Specifications      :      ASTM B584, C89833, ASTM A276, S31630, ASTM B16, C36000
Material      :      Bronze
Model      :      UPBA350S
Packaging Material      :      PTFE
Pressure Rating      :      600 psi WOG
Seat Material      :      RPTFE
Stem Material      :      316 Stainless Steel
Type      :      3-Piece, Full-Port
  • Lead-free
  • Blowout-proof stem design
  • Cast bronze tailpiece, 15% glass-filled RPTFE seat, 25% glass-filled RPTFE thrust washer, 301/302 stainless steel nut locker, stainless steel washer, internal tooth
  • Stainless steel 17-7 PH Belleville, washer, steel hex head cap screw and hex nut, carbon steel socket head cap screw, brass gland nut

Standards/Certifications: IAPMO R&T listed, MSS SP-110, ANSI/NSF 61 and 372 certified

Applications: For potable water applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20451_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20666_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20674_Spec.pdf
