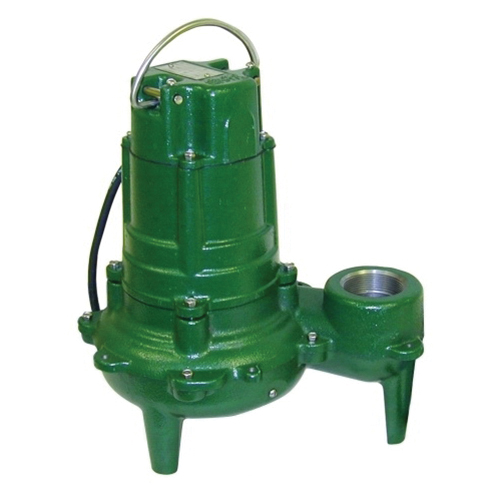

Zoeller Pumps 270-0002
N270 Powder Coated Epoxy Cast Iron 1-Seal Manual Effluent/Sewage Pump, 115 VAC, 1 hp, 3450 rpm, 132 gpm, 29 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: N270
- MPN: 270-0002
- UPC: 053514057817
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 7.5 A |
| Bearing Type | : | Sleeve Upper, Ball Lower |
| Connection Size | : | 2 in NPT Discharge |
| Cord Length | : | 20 ft |
| Dimension | : | 13-1/16 in W x 18-23/32 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 132 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Impeller Material | : | Plastic |
| Item Name | : | Effluent/Sewage Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 29 ft |
| Model | : | N270 |
| Phase | : | 1 ph |
| RPM | : | 3450 rpm |
| Series | : | Waste-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Manual |
| Voltage Rating | : | 115 VAC |
- Durable, ASTM class 25 cast iron motor housing cover and pump housing
- Engineered plastic base
- Not affected by materials normally found in drainage and sewage sumps
- Stainless steel screws, bolts and handle
- Oil-filled and hermetically sealed, automatic reset thermal overload protection motor
- Neoprene square ring and gasket
- Carbon and ceramic shaft seal
- Upper sleeve and lower ball bearing running in bath of oil
- Passes 2 in (50 mm) spherical solids
- 2 in NPT discharge
- Corrosion-resistant, powder coated epoxy finish
- Class B insulation, permanent split capacitor motor
- UL listed 3-wire neoprene cord and plug
- Oil-filled cooling
- Auto reset thermal overload motor protection
- Non-clogging vortex impeller type
- 1-year limited warranty
Standards/Certifications: cCSAus 227875, SSPMA certified
