Domestic Manufacturer 0311061600

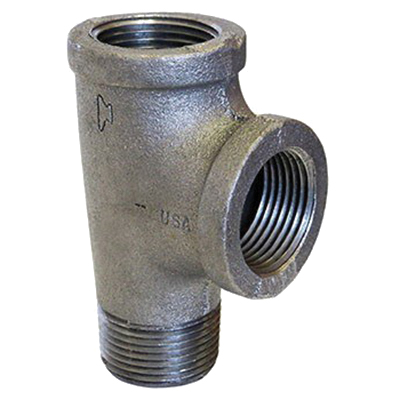

1106R Class 150 SCH STD Galvanized Malleable Iron Street Tee, 1/4 in, FNPT x FNPT x MNPT

  • Manufacturers: Domestic Manufacturer
  • Brand Name: Domestic Manufacturer
  • PN: GST14
  • MPN: 0311061600
  • UPC: 690291030390
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/4 in
Connection Type      :      FNPT x FNPT x MNPT
Finish      :      Galvanized
Item Name      :      Street Tee
Length      :      1-3/16 in
Material Specifications      :      ASTM A197, ASTM A153
Material      :      Malleable Iron
Model      :      1106R
Pressure Class      :      Class 150
Pressure Rating      :      300 psi
Schedule      :      STD
Temperature Rating      :      -20 to 150 deg F

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in and larger are 100% gas tested at a minimum of 100 psi.

Standards/Certifications: ASME B16.3, ASME B1.20.1, NSF/ANSI 61 certified, cULus listed, FM approved
