Woodford WO22CP12

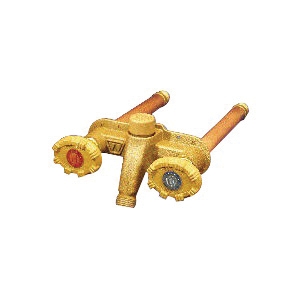

Rough Brass Freezless Hot and Cold Faucet, 2.5 gpm, 5 in Centers, 12 in THK

  • Manufacturers: Woodford
  • Brand Name: Woodford
  • PN: WO22CP12
  • MPN: WO22CP12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Faucet Center Size      :      5 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      Male Pipe Thread x Sweat
Faucet Mount      :      Wall, Horizontal
Handle Material      :      Polycarbonate
Handle Type      :      Oval
Item Name      :      Hot and Cold Faucet
Length      :      7 in
Material      :      Rough Brass
Pressure Rating      :      125 psi
Temperature Rating      :      120 deg F
Type      :      Freezless
Width      :      3 in

The freezeless model 22 is designed and intended for year round residential irrigation purposes no matter the outside temperature. This faucet will not rupture from freezing when the valve is shut-off and the hose is removed and faucet allowed to drain. The model 22 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.

  • Faucet drains automatically when hose is removed
  • Permanent stainless steel seat will not wire draw
  • EPDM packing to prevent leaking
  • Full circle threads on valve body and retainer
  • No-lead solder - all solder joints
  • Seat washer - standard O size
  • Standard "O" size seat washer
  • No-lead solder
  • 3/4 in male hose thread
  • 12 in wall thickness

Standards/Certifications: ASSE 1019 type A, CSA certified, IAPMO, UPC listed

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29560_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29560_Spec.pdf
