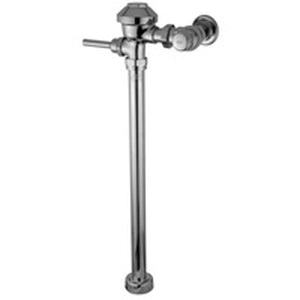

Zurn Z6017-YB-YC

Aquaflush Z6017 Brass Diaphragm Flush Valve, 6.5 gpf, Chrome-Plated

  • Manufacturers: Zurn Industries
  • Brand Name: Zurn
  • PN: Z6017-YB-YC
  • MPN: Z6017-YB-YC
  • UPC: 670240416604
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Configuration      :      Exposed
Finish      :      Chrome-Plated
Flow Rate      :      6.5 gpf
Flush Type      :      Manual
Handle Type      :      Cylinder
Includes      :      Sweat Solder Kit, Vandal-Resistant Stop Cap, and Cast Wall Flange
Item Name      :      Diaphragm Flush Valve
Length      :      24 in
Material      :      Brass
Model      :      Z6017
Pressure Rating      :      10 - 100 psi
Rough-In      :      11-1/2 in
Spud Placement      :      Top
Spud Size      :      1-1/2 in
Supply Pipe Size      :      1 in
Theme/Style      :      Aquaflush

Exposed, quiet diaphragm-type, chrome-plated flushometer valve with a polished exterior. Complete with a chloramine-resistant, dual seal diaphragm with a clog-resistant by-pass. The valve is ADA compliant with a non-hold-open and no leak handle feature, high back pressure vacuum breaker, 1-piece hex coupling nut, adjustable tailpiece, spud coupling and flange for top spud connection.

  • Clog-resistant linear bypass diaphragm
  • Chemical-resistant gaskets and seals for extended service life with lower maintenance costs
  • Manual ADA compliant handle with no-leak seal technology
  • 3-years warranty

Standards/Certifications: ADA compliant

Applications: For service sinks
