Victaulic V030716PE3

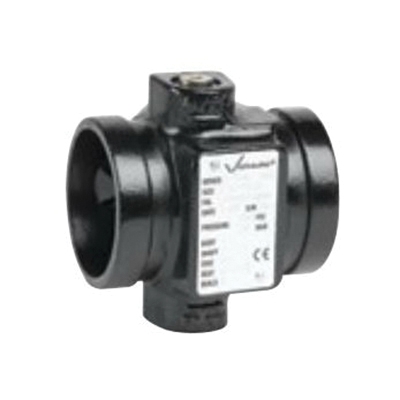

Check Valve 716 Black PPS Coated Ductile Iron Check Valve, 3 in, NPT

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI716.3
  • MPN: V030716PE3
  • UPC: 68830465659
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Black
Connection Size      :      3 in
Connection Type      :      NPT
Dimension      :      4-1/4 in L
Disc Material      :      Aluminum Bronze
Finish      :      PPS Coated
Flow Co-Efficient      :      250 Cv
Item Name      :      Check Valve
Material      :      Ductile Iron
Model      :      716
Pressure Rating      :      300 psi
Seat Material      :      PPS Coated Ductile Iron
Sub Brand      :      Check Valve
  • Prevents backflow
  • 1-disc mechanism incorporates a spring assisted feature
  • Can be installed either vertically (flow upwards only) or horizontally
  • Valve body cast with arrow indicator to assist with proper valve orientation

Standards/Certifications: ISO 9001 standard
