Victaulic V024716PE3

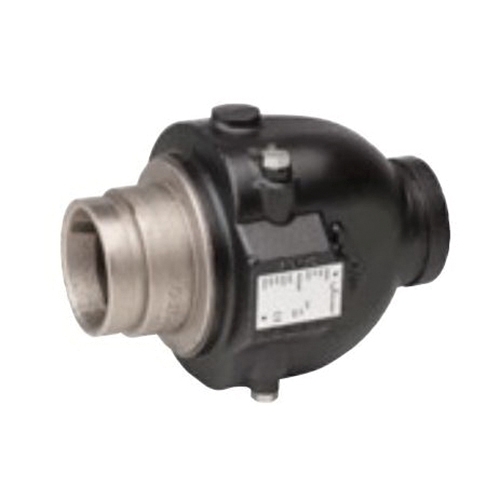

Check Valve 716H Black Painted Ductile Iron High Pressure Check Valve, 2-1/2 in, NPT

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI716H.212
  • MPN: V024716PE3
  • UPC: 68830465643
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Black
Connection Size      :      2-1/2 in
Connection Type      :      NPT
Dimension      :      9.38 in L
Disc Material      :      Cast Stainless Steel
Finish      :      Painted
Flow Co-Efficient      :      215 Cv
Item Name      :      Check Valve
Material Specifications      :      ASTM A536, Grade 65-45-12, ASTM B733
Material      :      Ductile Iron
Model      :      716H
Pressure Rating      :      365 psi
Sub Brand      :      Check Valve
Type      :      High Pressure
  • Prevents backflow
  • 1-disc mechanism incorporates a spring assisted feature
  • Can be installed either vertically (flow upwards only) or horizontally
  • Valve body cast with arrow indicator to assist with proper valve orientation

Standards/Certifications: ISO 9001 standard
