Victaulic V020717PH0

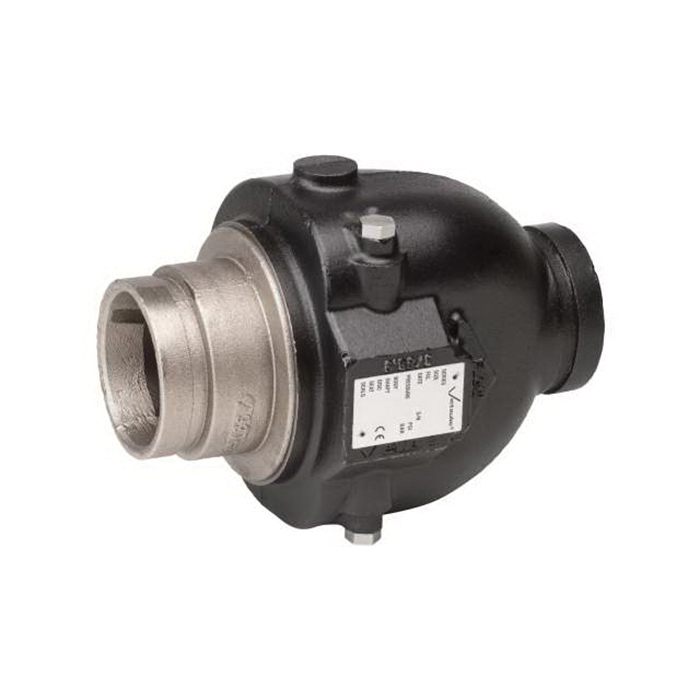

FireLock 717H Black Painted Ductile Iron High Pressure Check Valve, 2 in, Grooved

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI717H.2
  • MPN: V020717PH0
  • UPC: 68830465574
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Black
Connection Size      :      2 in
Connection Type      :      Grooved
Dimension      :      8.66 in L x 6.46 in W
Disc Material      :      Cast Stainless Steel
Finish      :      Painted
Item Name      :      Check Valve
Material Specifications      :      ASTM A536, Grade 65-45-12, ASTM B733
Material      :      Ductile Iron
Model      :      717H
Pressure Rating      :      365 psi
Seal Material      :      Nitrile
Sub Brand      :      FireLock
Type      :      High Pressure
  • Features a stainless steel disc which seats against the O-ring seal, when mounted on the electroless nickel-plated face
  • Prevents backflow
  • 1-disc mechanism incorporates a spring-assisted feature for non-slamming operation
  • Can be installed either vertically (flow upwards only) or horizontally
  • Valve body cast with arrow indicator to assist with proper valve orientation
  • Optional upstream and downstream pressure taps included on select sizes
  • Provided with grooved ends
  • Rated for ambient temperature use in fire protection systems

Standards/Certifications: cULus listed, FM, LPCB, VdS, CTP approved

Applications: For fire protection systems
