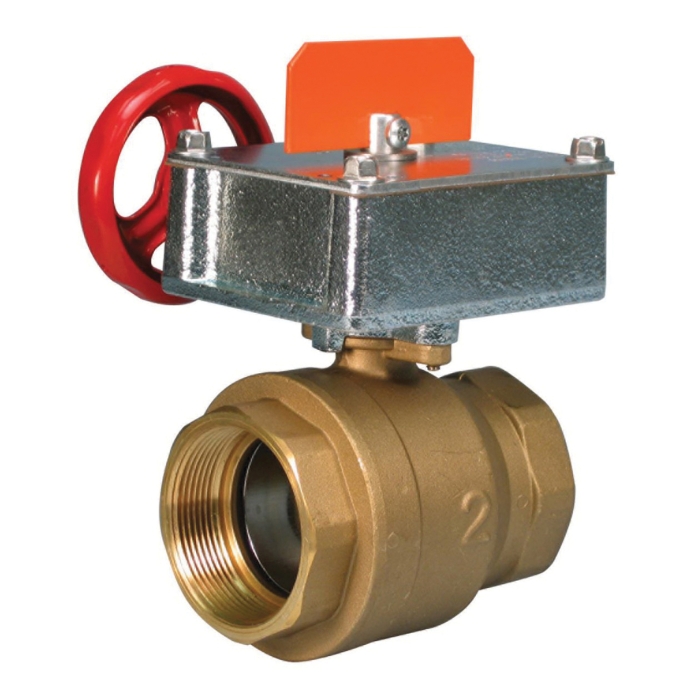

Victaulic V012728CT1
FireLock 728 Brass Full Port Ball Valve with Actuator, 1-1/4 in, Grooved
- Manufacturers: Victaulic
- Brand Name: Victaulic
- PN: VI728G.114
- MPN: V012728CT1
- UPC: 68830451675
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Ball Material | : | Chrome-Plated Brass |
| Connection Size | : | 1-1/4 in |
| Connection Type | : | Grooved |
| Dimension | : | 3.31 in L x 4.95 in H |
| Item Name | : | Ball Valve with Actuator |
| Material Specifications | : | ASTM B124, ASTM B16 C36000 |
| Material | : | Brass |
| Model | : | 728 |
| Pressure Rating | : | 365 psi |
| Seat Material | : | Carbon Filled TFE |
| Stem Material | : | 316 Stainless Steel |
| Sub Brand | : | FireLock |
| Type | : | Full Port |
The series 728 FireLock valve is a full port, ball valve that is UL/FM rated for 365 psi service in all sizes (LPCB and VdS listed for 20 bar services). Available with grooved or threaded ends (NPT), the valve body is brass. The ball is chrome-plated brass with a stainless steel stem. Reinforced seats aid ease of operation and provide a durable, corrosion-free seat. Flow characteristics exceed UL specification 1091 and FM approval standard 1112. The valve is approved for indoor and outdoor use.
- Standard port and supervisory switch
- Brass stem nut, brass traveling nut, on a steel lead screw, in a ductile iron housing actuator
Standards/Certifications: cULus Listed, FM, LPCB, Vds approved
