Balon 2R-F-12-FF

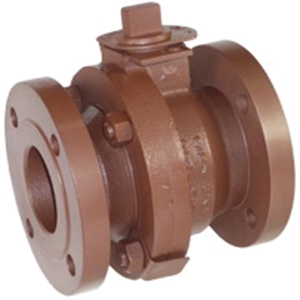

F-Series Class 125 Ductile Iron Flat Face Floating Ball Valve, 2 in, Flanged

  • Manufacturers: Balon Corporation
  • Brand Name: Balon
  • PN: 2R-F-12-FF
  • MPN: 2R-F-12-FF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Carbon Steel
Connection Size      :      2 in
Connection Type      :      Flanged
Dimension      :      7 in L
Flow Co-Efficient      :      125 Cv
Item Name      :      Floating Ball Valve
Material Specifications      :      ASTM A395
Material      :      Ductile Iron
Operator Type      :      Carbon Steel/Ductile Iron Lever Handle
Pressure Class      :      Class 125
Pressure Rating      :      200 psi
Seat Material      :      Nylon
Series      :      F
Stem Material      :      Carbon Steel
Type      :      Flat Face
  • High-grade annealed ductile iron for better corrosion-resistance and greater yield strength
  • Multi-seal seats
  • Fire safe design
  • Rugged locking device standard
  • Maintenance-free sealing improvement over lubricated ball valves and cast iron plug valve
  • Eliminates high maintenance of lubricated valves
  • Standard hex bolt handle bolt, polyethylene weather guard, dust cover, carbon spring steel lock plate retainer, stop plate retainer, carbon steel stop plate, Buna-N O-ring, fully annealed end adapter
  • 1-1/2 in port

Standards/Certifications: ANSI B16.34, ANSI B16.42

  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4939_Tech.pdf
