Spears 413-010

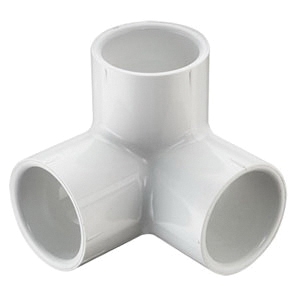

SCH 40 White PVC 90 deg Elbow with 1 in Side Outlet, 1 in, Socket

  • Manufacturers: Spears Manufacturing
  • Brand Name: Spears
  • PN: 413-010
  • MPN: 413-010
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Color      :      White
Connection Size      :      1 in
Connection Type      :      Socket
Item Name      :      Elbow with 1 in Side Outlet
Material Specifications      :      ASTM D1784 Type I Cell Classification 12454, ASTM D2466
Material      :      PVC
Method of Manufacturer      :      Injection Molded
Schedule      :      SCH 40
Temperature Rating      :      140 deg F

Spears Schedule 40 PVC fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure the very best PVC fittings available.

Standards/Certifications: LPCB, NSF certified

Applications: For portable water applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6994_Cat.pdf
