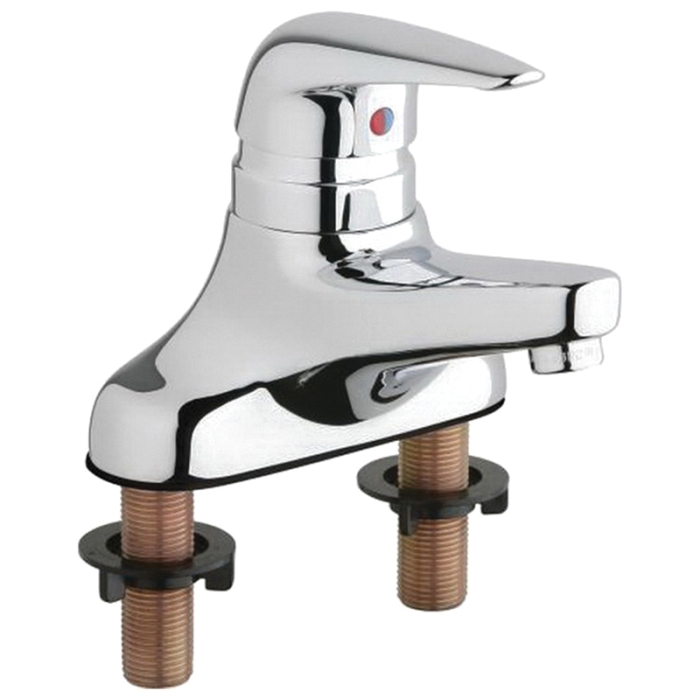

Chicago Faucet 420-ABCP
Brass 1-Handle Hot and Cold Water Mixing Sink Faucet, Chrome-Plated, 5.7 Lpm at 60 psi, 4 in Centers
- Manufacturers: Chicago Faucet
- Brand Name: Chicago Faucet
- PN: 420-CP
- MPN: 420-ABCP
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Cartridge Type | : | Ceramic |
| Deck Thickness | : | 1-1/2 in |
| Faucet Center Size | : | 4 in |
| Faucet Connection Size | : | 1/2 in |
| Faucet Connection Type | : | NPSM |
| Faucet Mount | : | Deck |
| Finish | : | Chrome-Plated |
| Flow Rate | : | 1.5 gpm |
| Handle Material | : | Brass |
| Handle Type | : | Lever |
| Item Name | : | Hot and Cold Water Mixing Sink Faucet |
| Length | : | 5-1/2 in |
| Material | : | Brass |
| Number of Handles | : | 1 |
| Number of Holes | : | 3 |
| Spout Height | : | 2 in |
| Spout Reach | : | 4-5/8 in |
| Valve Type | : | Ceramic Disc |
- Pressure compensating laminar flow non-aerating outlet
- 4-1/4 in lever handle
- Ceramic operating cartridge with volume control and hot water limit stop
- 1/2 in NPSM supply inlets for 3/8 or 1/2 in flexible riser
- 4-5/8 in center to center rigid cast brass spout
- 1.5 gpm pressure compensating laminar flow non-aerating outlet
- Ecast construction with equal to or less than 0.25% lead content by weighted average
- 20 - 125 psi operating pressure
- 40 - 140 deg F temperature range
- Lifetime limited faucet warranty, 5-years limited cartridge warranty, 1-year limited finish warranty
Standards/Certifications: ADA compliant, ANSI/ICC A117.1, ASME A112.18.1, CSA B125.1, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, ANSI/NSF 372, WaterSense certified
Applications: For commercial
Installation Sheet
