Legend Valve 301-325NL

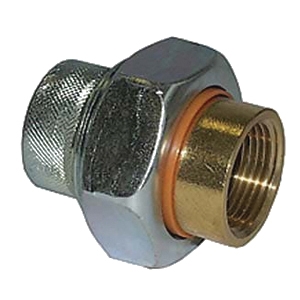

T-573NL Galvanized Carbon Steel Dielectric Union, 1 in, FNPT, Lead-Free

  • Manufacturers: Legend Valve
  • Brand Name: Legend Valve
  • PN: 301-325NL
  • MPN: 301-325NL
  • UPC: 662545087757
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      FNPT
Finish      :      Galvanized
Item Name      :      Dielectric Union
Length      :      2-1/2 in
Material      :      Forged Steel
Method of Manufacturer      :      Forged
Model      :      T-573NL
Pressure Rating      :      200 psi CWP
Temperature Rating      :      180 deg F
  • Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
  • High strength, galvanized forged steel construction make them ideal for residential and commercial applications
  • Designed to reduce stray current and galvanic corrosion where 2-dissimilar metals are joined
  • Self-aligning, non-conductive elastomer gasket and thermoplastic insert create a positive seal and complete isolation between the tubing and piping ends
  • Includes galvanized forged carbon steel union nut, forged brass FIP adapter, EPDM rubber gasket, ABS resin insert insulator

Standards/Certifications: ANSI/ASME B16.39, ANSI/ASME B1.20.1, NSF 372 certified, ISO 9002 standard, US federal public law 111-380

Applications: For residential and commercial
