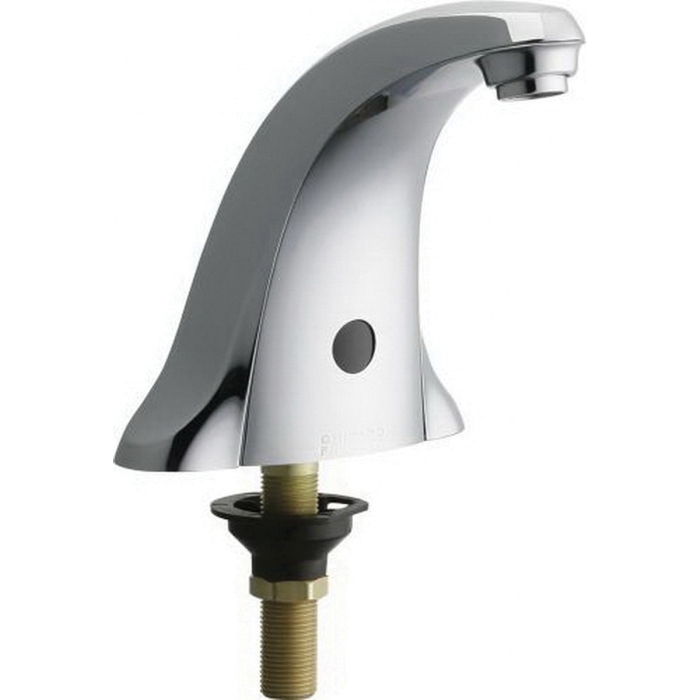

Chicago Faucet 116.606.AB.1

E-Tronic 40 Basic Brass Traditional Dual-Beam Infrared Touch-Free Programmable Electronic Sensor Faucet, Chrome-Plated, 4 in Centers, 0.5 gpm

  • Manufacturers: Chicago Faucet
  • Brand Name: Chicago Faucet
  • PN: 116-606-AB-1
  • MPN: 116.606.AB.1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Deck Thickness      :      1-7/8 in
Dimension      :      5-3/4 in L x 2-5/8 in W x 6-1/2 in H
Faucet Center Size      :      4 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      NPSM
Faucet Hole Size      :      7/8 in
Faucet Mount      :      Deck
Faucet Type      :      Electronic
Finish      :      Chrome-Plated
Flow Rate      :      0.5 gpm
Item Name      :      Electronic Sensor Faucet
Material      :      Brass
Number of Holes      :      1
Sensor Type      :      Dual Beam Infrared
Spout Height      :      5-3/8 in
Spout Reach      :      5-3/8 in
Spout Type      :      Traditional
Spray Pattern      :      Non-Aerated
Sub Brand      :      E-Tronic 40
Theme/Style      :      Basic
Type      :      Touch-Free, Programmable
Valve Type      :      Solenoid
Voltage Rating      :      6 VDC
  • Pressure compensating Econo-Flo non-aerating spray
  • 1-supply for tempered water
  • 6 V lithium CRP2 battery
  • Multiple field adjustable modes and ranges
  • For commercial use
  • 0.5 gpm vandal-proof pressure compensating Econo-Flo non-aerating spray outlet
  • 20 - 125 psi operating pressure
  • 40 - 140 deg F temperature range
  • 5-years limited faucet warranty
  • 1-year limited finish warranty
  • 5-years limited mechanical warranty
  • 3-years limited electronics and solenoid warranty
  • 5-years warranty

Standards/Certifications: ADA compliant, ANSI/ICC A117.1, ASME A112.18.1, CSA B125.1, CalGreen compliant, ANSI/NSF 372, cCSAus certified

Applications: Compatible with Chicago Faucets commander handheld programming unit

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2716_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2716_Spec.pdf
