B-Line B3144-8 PLN

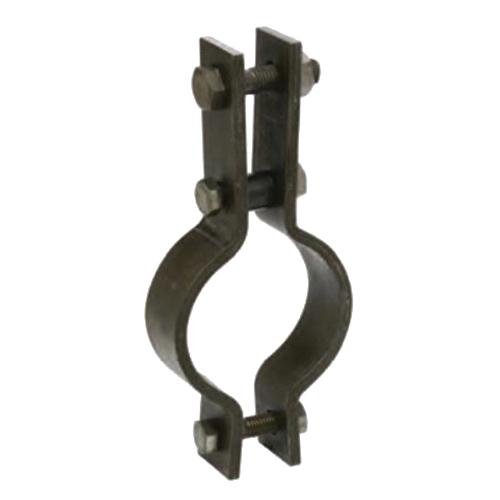

B3144 Black Plain Steel Standard 2-Bolt Pipe Clamp, 8 in

  • Manufacturers: Cooper Industries
  • Brand Name: B-Line
  • PN: B3144.8
  • MPN: B3144-8 PLN
  • UPC: 78205170886
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bolt Size      :      7/8-9 in
Color      :      Black
Dimension      :      18-5/16 in L
Finish      :      Plain
Item Name      :      2-Bolt Pipe Clamp
Load Capacity      :      2555 lb
Material      :      Steel
Model      :      B3144
Nominal Size      :      8 in
Temperature Rating      :      750 deg F
Type      :      Standard
  • Recommended for the suspension of pipe requiring up to 4 in of insulation and where flexibility of the clamp may be necessary
  • Use B3200 weldless eye nut, B3210 eye rod or B3211 welded eye rod
  • Also recommended for the attachment of sway bracing up to 8 in

Standards/Certifications: Federal specification WW-H-171E and A-A-1192A (type 3), ANSI/MSS SP-69 and SP-58 (type 3) certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12443_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12426_Spec.pdf
