Bradley S19-2150

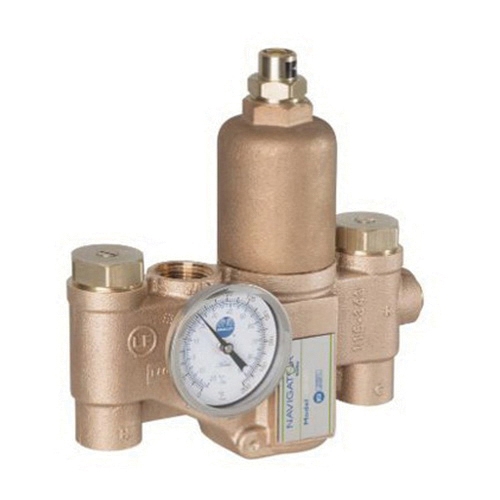

Navigator Emergency Fixture Thermostatic Mixing Valve, 3/4 x 1 in, NPT

  • Manufacturers: Bradley Corporation
  • Brand Name: Bradley
  • PN: BRS192150
  • MPN: S19-2150
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 x 1 in
Connection Type      :      NPT
Flow Rate      :      37 gpm at 60 psi
Height      :      8 in
Item Name      :      Thermostatic Mixing Valve
Length      :      9-1/4 in
Mounting      :      Universal
Pressure Rating      :      125 psi
Sub Brand      :      Navigator
Temperature Rating      :      65 - 90 deg F
Type      :      Emergency Fixture
Width      :      3-1/8 in
  • Reliable liquid-filled thermostat with 10-years warranty
  • Integral strainer checkstops on Inlets
  • Adjustable set-point within temperature range
  • Accurate temperature control to within plus/minus 3 deg F
  • Built-in cold water bypass, assuring cold-flow
  • Positive shut-off of hot supply when cold supply is lost
  • Easy installation and serviceability
  • Dirt and lime-resistant
  • Dial thermometer
  • Factory assembled and tested
  • Universal mounting capability
  • 18 ga body and door, left-hand hinge, cylinder lock, inlet/outlet knock-out holes for mounting flexibility, stainless steel or baked white enamel finishes, surface mounted or recessed style cabinet
  • 33 - 80 deg F cold water inlet temperature
  • 180 deg F maximum inlet temperature
  • 120 - 140 deg F recommended inlet temperature
  • 85 deg F set-point
  • 3 gpm minimum flow

Standards/Certifications: ANSI/ISEA Z358.1, ASSE 1071, UPC listed
