Tyler Pipe SPL 220
Send Print
  1. pin-int

Tyler Pipe SPL 220

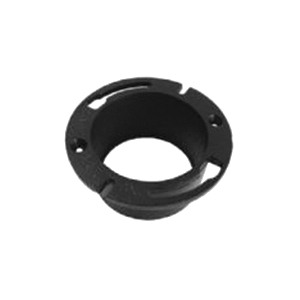

Cast Iron Service Weight Notched and Slotted Closet Flange, 4 x 4 in

  • Manufacturers: Tyler Pipe
  • Brand Name: Tyler Pipe
  • PN: CICF4.4
  • MPN: SPL 220
  • UPC: 61194200754
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      4 in
Item Name      :      Service Weight Notched and Slotted Closet Flange
Length      :      4 in
Material Specifications      :      ASTM A74
Material      :      Cast Iron
Outside Diameter      :      7-3/16 in
Temperature Rating      :      212 deg F

Cast iron is the premier piping material for sanitary and storm drain, waste and vent applications. It has been used in these applications for hundreds of years and is for non-pressure applications where temperatures will not exceed 212 deg F. It is the most durable DWV piping system available and can be used in all types of construction. It has high crush strength, is non-combustible and offers superior sound deadening performance.

  • Fits over 4 in pipe for caulked joints
  • Made in USA

Standards/Certifications: NSF certified, ISO 9001:2008 standard

Applications: For use with sanitary and storm drain, waste, vent
