Water-Tite 82064
Send Print
  1. pin-int

Water-Tite 82064

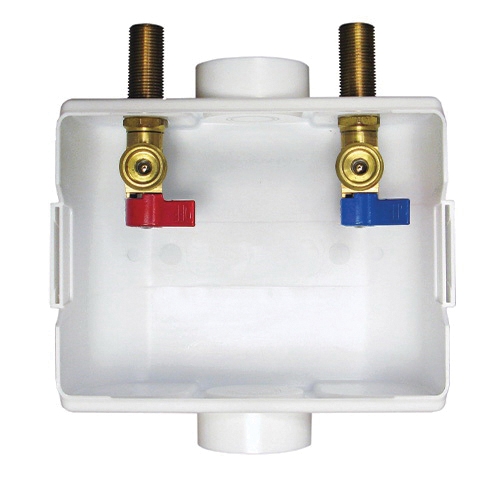

Econo W4700 White Brass Center Drain Washing Machine Outlet Box, 1/2 in, Sweat

  • Manufacturers: IPS Corporation
  • Brand Name: Water-Tite
  • PN: 82064
  • MPN: 82064
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      Sweat
Finish      :      White
Height      :      6-1/4 in
Includes      :      1/4-Turn Valve
Item Name      :      Washing Machine Outlet Box
Length      :      8 in
Material      :      Brass
Model      :      W4700
Mounting      :      Top
Sub Brand      :      Econo
Type      :      Center Drain
Width      :      3-3/8 in
  • Box can be inverted for top mount valves and center drain option
  • Textured faceplate for aesthetic finish
  • Valves preinstalled
  • 1-piece construction with raised drip guard contains potential leaks down the drain
  • Raised EZ out test caps allow for EZ removal
  • Oversized knockouts will not fall down drain
  • 8-13/16 in H x 10-3/16 in W faceplate dimension
  • 6-1/8 in H x 8-1/4 in W x 3-3/4 in D rough opening

Standards/Certifications: ASME A112.18.1, UPC listed

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10486_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10428_Spec.pdf
