Guy Gray 82357

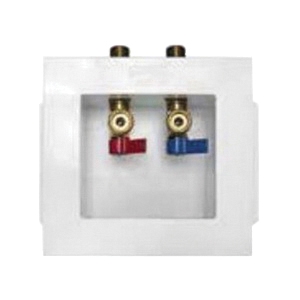

FR-12 PVC Washing Machine Outlet Box, 1/2 in, CPVC

  • Manufacturers: IPS Corporation
  • Brand Name: Guy Gray
  • PN: 82357
  • MPN: 82357
  • UPC: 012181823576
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      CPVC
Height      :      7-7/8 in
Includes      :      1/4-Turn Valve
Item Name      :      Washing Machine Outlet Box
Length      :      8-5/16 in
Material      :      PVC
Model      :      FR-12
  • Intumescent pad attached to back of outlet box
  • Molded-in test cap for testing of DWV drain system test cap will not fall down the drain
  • Snap-on frame accommodates up to 1 in drywall and is interchangeable with all FR-12 fire-rated plastic outlet boxes
  • Simple installation - just nail or screw to stud
  • Pre-loaded nails for right or left stud bay installation
  • 1-faceplate fits washer, ice maker, gas, AAV and auxiliary drain outlet boxes
  • 1 and 2 hr rated
  • Made of high temperature resin
  • No special wrapping or sheet rock fabrication needed

Standards/Certifications: ASME A112.18.1, City of LA listed, UPC listed, Warnock Hersey certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10437_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10437_Spec.pdf
