Bradley S59-2025

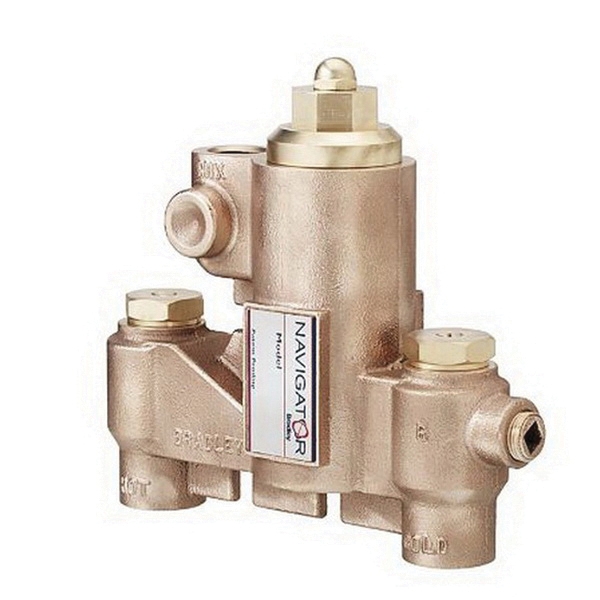

Navigator Standard Thermostatic Mixing Valve, 3/4 x 1 in, NPT
- Manufacturers: Bradley Corporation
- Brand Name: Bradley
- PN: BRS592025
- MPN: S59-2025
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Connection Size | : | 3/4 x 1 in |
| Connection Type | : | NPT |
| Flow Rate | : | 29 gpm at 60 psi |
| Height | : | 8-3/4 in |
| Item Name | : | Thermostatic Mixing Valve |
| Length | : | 9 in |
| Mounting | : | Universal |
| Pressure Rating | : | 125 psi |
| Sub Brand | : | Navigator |
| Temperature Rating | : | 85 - 135 deg F Standard, 50 - 100 deg F Low, 100 - 150 deg F High |
| Type | : | Standard |
| Width | : | 2-7/8 in |
- Reliable liquid-filled thermostat with 10-years warranty
- Integral strainer checkstops on Inlets
- Adjustable set-point within temperature range
- Accurate temperature control
- Positive shut-off of hot supply when cold supply is lost
- Easy installation and serviceability
- Dirt and lime-resistant
- A maximum inlet temperature of 200 deg F
- Factory assembled and tested
- Universal mounting capability
- 18 ga body and door, left-hand hinge, cylinder lock, inlet/outlet knock-out holes for mounting flexibility, stainless steel or baked white enamel finishes, surface mounted or recessed style with flange cabinet
- 33 - 80 deg F cold water inlet temperature
- 2 gpm minimum flow
- 110 deg F standard, 80 deg F low, 130 deg F high set-point
Standards/Certifications: ASSE 1017, CSA B125.3, cUPC listed, NPC, IPC, ANSI/NSF 372 certified
