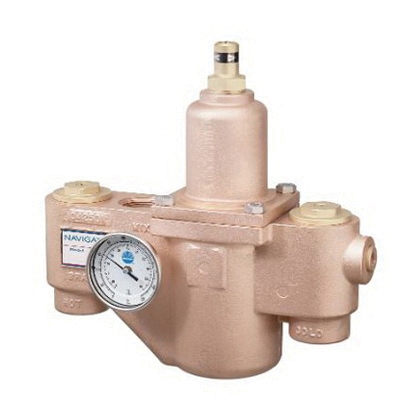

Bradley S59-3130

Navigator High/Low Thermostatic Mixing Valve, 1-1/4 x 1-1/2 in, NPT

  • Manufacturers: Bradley Corporation
  • Brand Name: Bradley
  • PN: BRS593130
  • MPN: S59-3130
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/4 x 1-1/2 in
Connection Type      :      NPT
Flow Rate      :      147 gpm at 60 psi
Height      :      13-1/2 in
Item Name      :      Thermostatic Mixing Valve
Length      :      14 in
Mounting      :      Universal
Pressure Rating      :      125 psi
Sub Brand      :      Navigator
Temperature Rating      :      90 - 120 deg F Standard, 110 - 140 deg F High
Type      :      High/Low
Width      :      4-7/8 in
  • Reliable liquid-filled thermostat with 10-years warranty
  • Integral strainer checkstops on Inlets
  • Adjustable set-point within temperature range
  • Accurate temperature control
  • Positive shut-off of hot supply when cold supply is lost
  • Easy installation and serviceability
  • Dirt and lime-resistant
  • A maximum inlet temperature of 120 - 200 deg F
  • Factory assembled and tested
  • Universal mounting capability
  • 18 ga body and door, left-hand hinge, cylinder lock, inlet/outlet knock-out holes for mounting flexibility, stainless steel or baked white enamel finishes, surface mounted or recessed style with flange cabinet
  • 33 - 80 deg F cold water inlet temperature
  • 4 gpm minimum flow
  • 110 deg F standard, 130 deg F high set-point

Standards/Certifications: ASSE 1017, CSA B125.3, cUPC listed, NPC, IPC, ANSI/NSF 372 certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12760_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12772_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS12772_Spec.pdf
