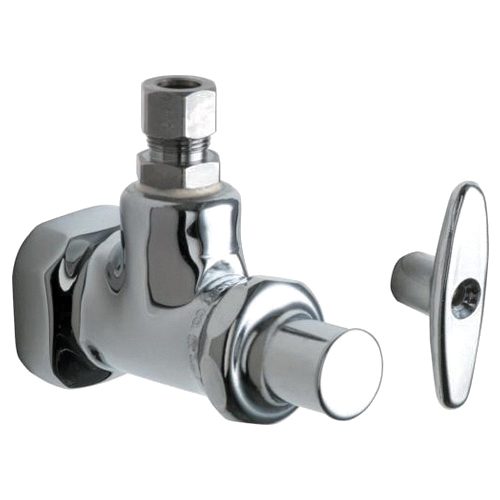

Chicago Faucet 1013-ABCP

Chrome-Plated Brass Angle Stop Valve, 1/2 x 3/8 in, FNPT x Compression

  • Manufacturers: Chicago Faucet
  • Brand Name: Chicago Faucet
  • PN: CH1013.12
  • MPN: 1013-ABCP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 x 3/8 in
Connection Type      :      FNPT x Compression
Dimension      :      3-1/2 in L
Finish      :      Chrome-Plated
Handle Type      :      Multi-Turn
Item Name      :      Angle Stop Valve
Material      :      Brass
Number of Handles      :      1
Pressure Rating      :      125 psi
Temperature Rating      :      40 - 140 deg F
  • Stop with 1/2 in inlet
  • 2-1/4 in tee handle, tapered square broach
  • Slow compression operating cartridge
  • Ecast construction with equal to or less than 0.25% lead content by weighted average
  • Brass stem

Standards/Certifications: ANSI/NSF 61 and 372, ASME A112.18.1, CSA B125.1
