Apollo Valves 88A-108-01

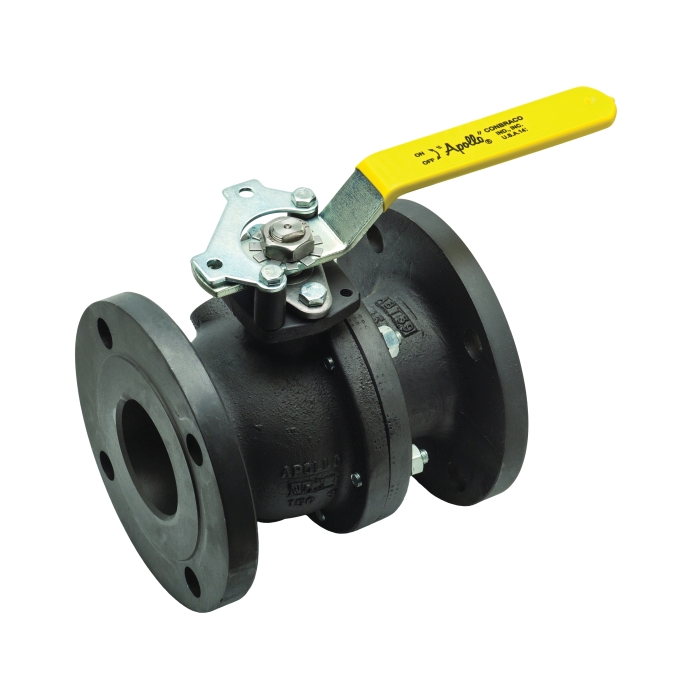

88A-100 Class 150 Carbon Steel Standard Port Ball Valve, 2 in, Flanged

  • Manufacturers: Apollo Valves
  • Brand Name: Apollo Valves
  • PN: 88A-108-01
  • MPN: 88A-108-01
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Carbon Steel
Connection Size      :      2 in
Connection Type      :      Flanged
Item Name      :      Ball Valve
Material Specifications      :      ASTM A216 WCB, ASTM A108 Type 1215, ASTM A276, ASTM A193 B7, ASTM A366
Material      :      Carbon Steel
Model      :      88A-100
Operator Type      :      Steel with Vinyl Grip Lever Handle
Pressure Class      :      Class 150
Seal Material      :      RPTFE
Seat Material      :      TFM
Stem Material      :      Carbon Steel
Type      :      Standard Port
  • Carbon steel retainer, packing gland, stop, PTFE stem seals, steel gland screws, 302 or 304 stainless steel gland plate, 316 stainless steel stem nut, RPTFE stem bearing, SAE J429 grade 2 stop screw, steel lock plate, stainless steel grounding spring
  • 5-years warranty
  • Made in USA
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10929_Instal.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10929_Tech.pdf
