A.Y. McDonald 5140-112

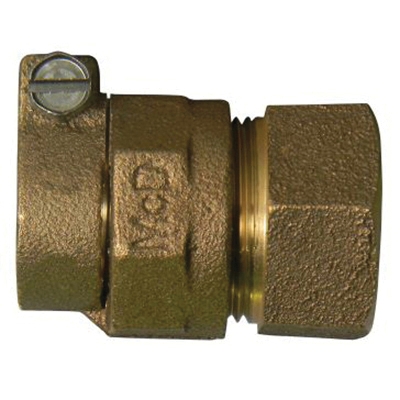

74754-22 Brass Adapter, 3/4 in CTS, Compression x FNPT, Lead-Free

  • Manufacturers: A.Y. McDonald Manufacturing
  • Brand Name: A.Y. McDonald
  • PN: 74754-22.34
  • MPN: 5140-112
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/4 in CTS
Connection Type      :      Compression x FNPT
Item Name      :      Adapter
Material Specifications      :      ASTM B584
Material      :      Brass
Model      :      74754-22

A.Y. McDonald service fittings are made in the United States of America and are manufactured to meet or exceed the AWWA C800 (latest revision) standard. Our service fittings are rated to withstand the same pressures as the tubing they are designed to fit. They are designed and tested for cold potable water only. EPDM rubber gaskets are used in our compression fittings.

  • Lead-free
  • Large wrench flats provided for proper installation
  • Insert stiffeners required for all flexible plastic connections

Standards/Certifications: ANSI/AWWA C800, ANSI/NSF 61 and 372 certified

Applications: For cold potable water only
