Cherne 270237

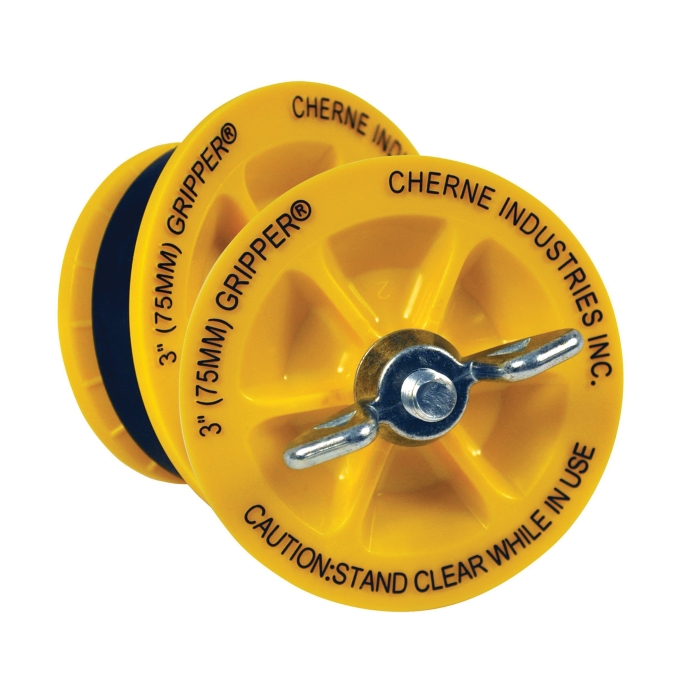

Original Gripper Natural Rubber/ABS End-of-Pipe Mechanical Plug, 3 in

  • Manufacturers: Oatey
  • Brand Name: Cherne
  • PN: CH270237
  • MPN: 270237
  • UPC: 675115270237
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Diameter      :      3 in
Fits Pipe Size      :      2.8 - 3.1 in
Item Name      :      Mechanical Plug
Length      :      2-1/2 in
Material      :      Natural Rubber/ABS
Pressure Rating      :      17 psi/40 ft Back
Sub Brand      :      Original Gripper
Type      :      End-of-Pipe

Cherne end-of-pipe gripper plugs can be used in applications including DWV (drain, waste and vent) testing and stack testing. End-of-pipe design seals only at the end of a pipe.

  • Plug is rated for 17 psi or 40 ft of head pressure
  • Extra large zinc wing nut for ease of tightening, no wrench required
  • Natural rubber O-ring for excellent expansion and memory
  • ABS glass-reinforced plates for added strength
  • Zinc-plated carriage bolt resists rust and corrosion

Applications: For DWV (drain, waste and vent) testing and stack testing
