Cherne 270288

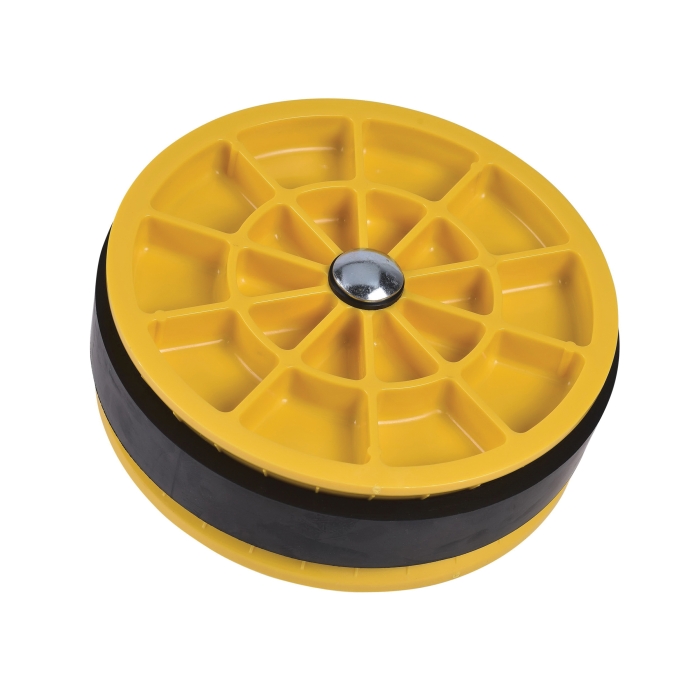

Original Gripper Natural Rubber/ABS Inside of Pipe Mechanical Plug, 8 in

  • Manufacturers: Oatey
  • Brand Name: Cherne
  • PN: CH270288
  • MPN: 270288
  • UPC: 675115270282
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Diameter      :      8 in
Fits Pipe Size      :      7.7 - 8.03 in
Item Name      :      Mechanical Plug
Length      :      3-3/4 in
Material      :      Natural Rubber/ABS
Pressure Rating      :      17 psi/40 ft Back
Sub Brand      :      Original Gripper
Type      :      Inside of Pipe

Cherne inside of pipe gripper plugs can be used in applications including DWV (drain, waste and vent) testing and stack testing. Inside-of-pipe design allows location of the plug inside the pipe.

  • Plug is rated for 17 psi or 40 ft of head pressure
  • Extra large zinc wing nut for ease of tightening, no wrench required
  • Natural rubber O-ring for excellent expansion and memory
  • ABS glass-reinforced plates for added strength
  • Zinc-plated carriage bolt resists rust and corrosion

Applications: For DWV (drain, waste and vent) testing and stack testing

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13438_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13541_Spec.pdf
