Cherne 271713

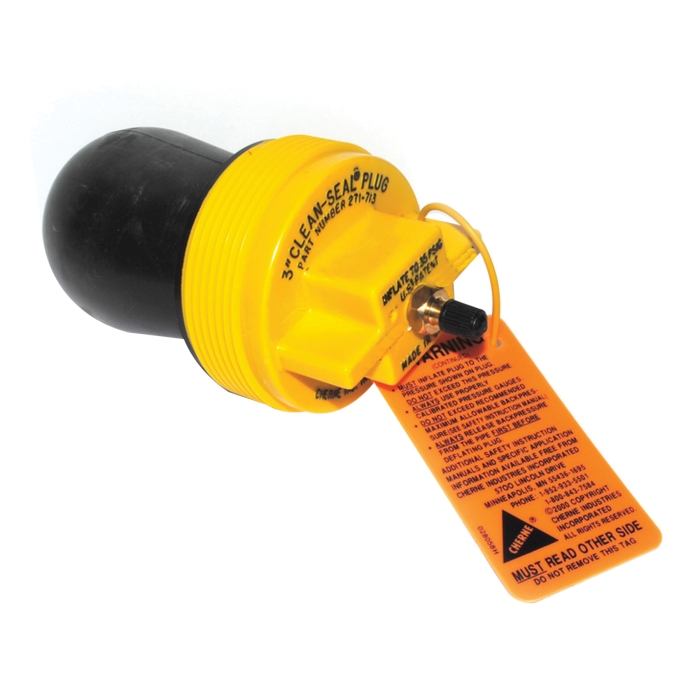

Clean-Seal Natural Rubber Pneumatic Plug, 3 in, 7.38 in L

  • Manufacturers: Oatey
  • Brand Name: Cherne
  • PN: CH271713
  • MPN: 271713
  • UPC: 675115271715
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Diameter      :      3 in
Item Name      :      Pneumatic Plug
Length      :      7.38 in
Material      :      Natural Rubber
Pressure Rating      :      13 psi/30 ft Back, 35 psi Inflation
Sub Brand      :      Clean-Seal

Cherne clean-seal plugs eliminate test water backsplash when stack testing drain, waste and vent plumbing systems. Simply thread them into a standard test tee, inflate the bladder and run your test.

  • Plug is rated for 13 psi or 30 ft of head pressure
  • Plug design keeps work area and plumber dry no backsplash
  • Seals both plastic and hard to seal cast iron threaded cleanouts
  • Easy-to-install
  • Natural rubber body provides a leak-free seal
  • High-impact ABS threads for maximum durability
  • Removable and field repairable inflation valve fitting
  • 1/4 in inflation thread
  • 3-1/2 in Dia deflated

Applications: For DWV (drain, waste and vent) testing and stack testing
